Page 41
EPSON Stylus Color 440/640/740
Revision A
Chapter 1
Product Description
41
1.8.6 C206 PNL Board (Stylus Color 440, 640)
Panel board (C206 PNL board) is located in the panel case where is in
the right bottom of the front printer and consists of 3 switches, 4 LEDs
and 1 connector.

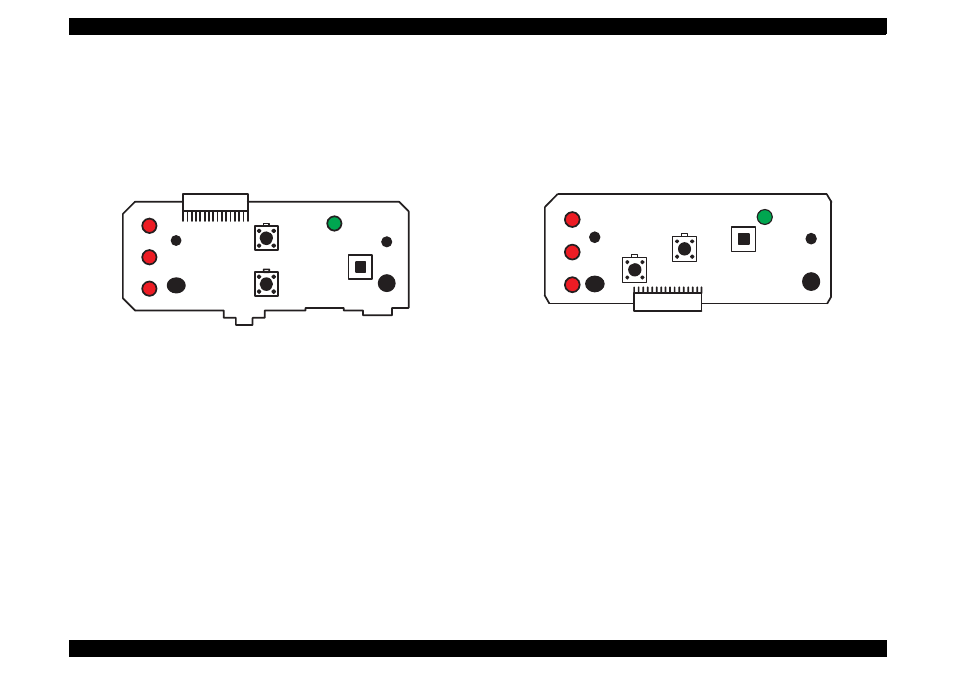

Figure 1-16. C206 PNL Board
1.8.7 C209 PNL Board (Stylus Color 740)
Panel board (C209 PNL board) is located in the panel case where is in
the right bottom of the front printer and consists of 3 switches, 4 LEDs
and 1 connector.
Figure 1-17. C209 PNL Board
SW0
SW2
SW1
LED4
LED0
LED1
LED2
CN1
SW0
SW2
SW1
LED4
LED0
LED1
LED2
