EPSON Stylus Color 440/640/740 Revision A
Chapter 6 Maintenance 157
W A R N I N G
Never apply oil to the CR guide shaft directly. This
may cause fatal damage to the components of the
printer.
Avoid applying oil excessively to the oil pad. This
may cause fatal damage to the components of the
printer.

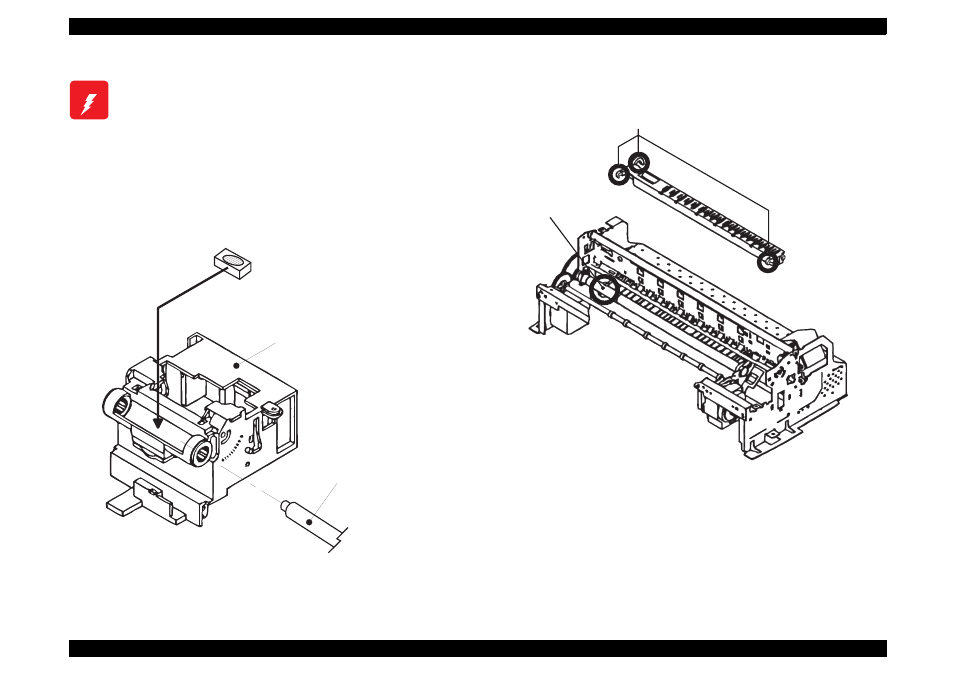

N o . 1 2
( O i l p a d )
* N e v e r a p p l y t h e o i l e x c e e d i n g 0 . 6 c c .
C a r r i a g e A s s e m b l y
( b o t t o m v i e w )
" S H A F T , C R , G U I D E "
N o . 1
N o . 2
1 0 m m
2 m m
2 m m
