A.1.2 Connector Summary

for Stylus Color 740

This section contains information on connectors in the main units of
Stylus Color 740. Figure 2 shows how the main component units of the
Stylus Color 740 are connected.

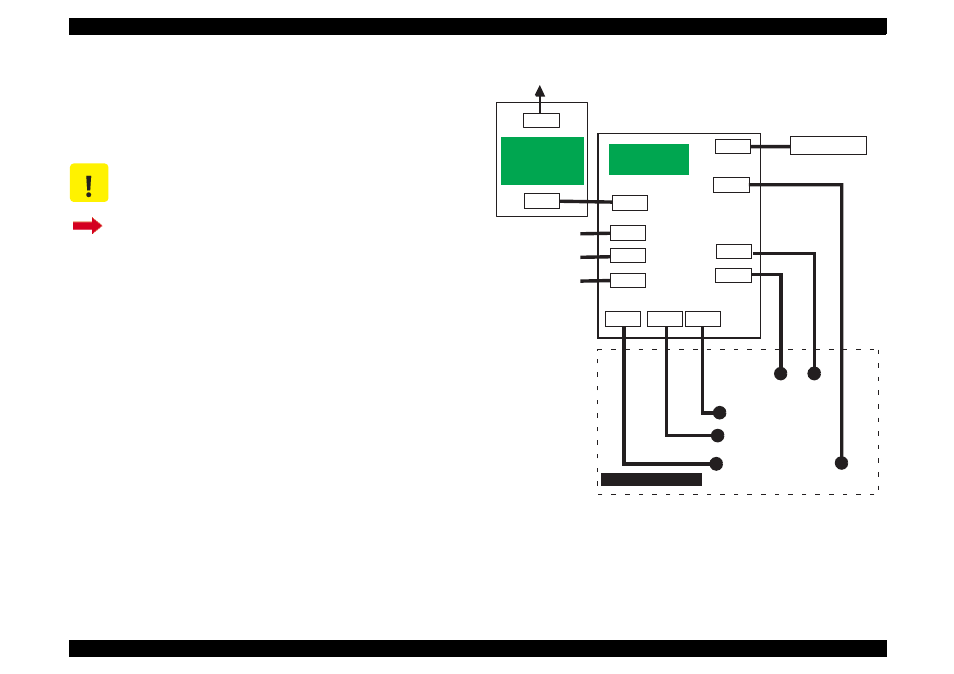

Figure A-2. Cable Connection of the Stylus Color 740

C A U T I O N

Information contained in this section only applies to
Stylus Color 740.

If you need information on Stylus Color 440 and Stylus
Color 640, return to Section A.1.1.

CN1

CN2

CN10

CN11

CN9

C257MAIN
(Main Board)

CN1

CN2

CN7

CN8

CN6

CN4

CN5

Control Panel

Print Head

CR
Motor

PF
Motor

ASF Sensor

HP Sensor

PE Sensor

Parallel I/F

Serial I/F

Printer Mechanism

C257PSB/PSE
C257PSK
(Power Supply
Board)

CN3

USB I/F
