Micro Motion

Model 2400S Transmitters for DeviceNet

™

Using the Transmitter User Interface

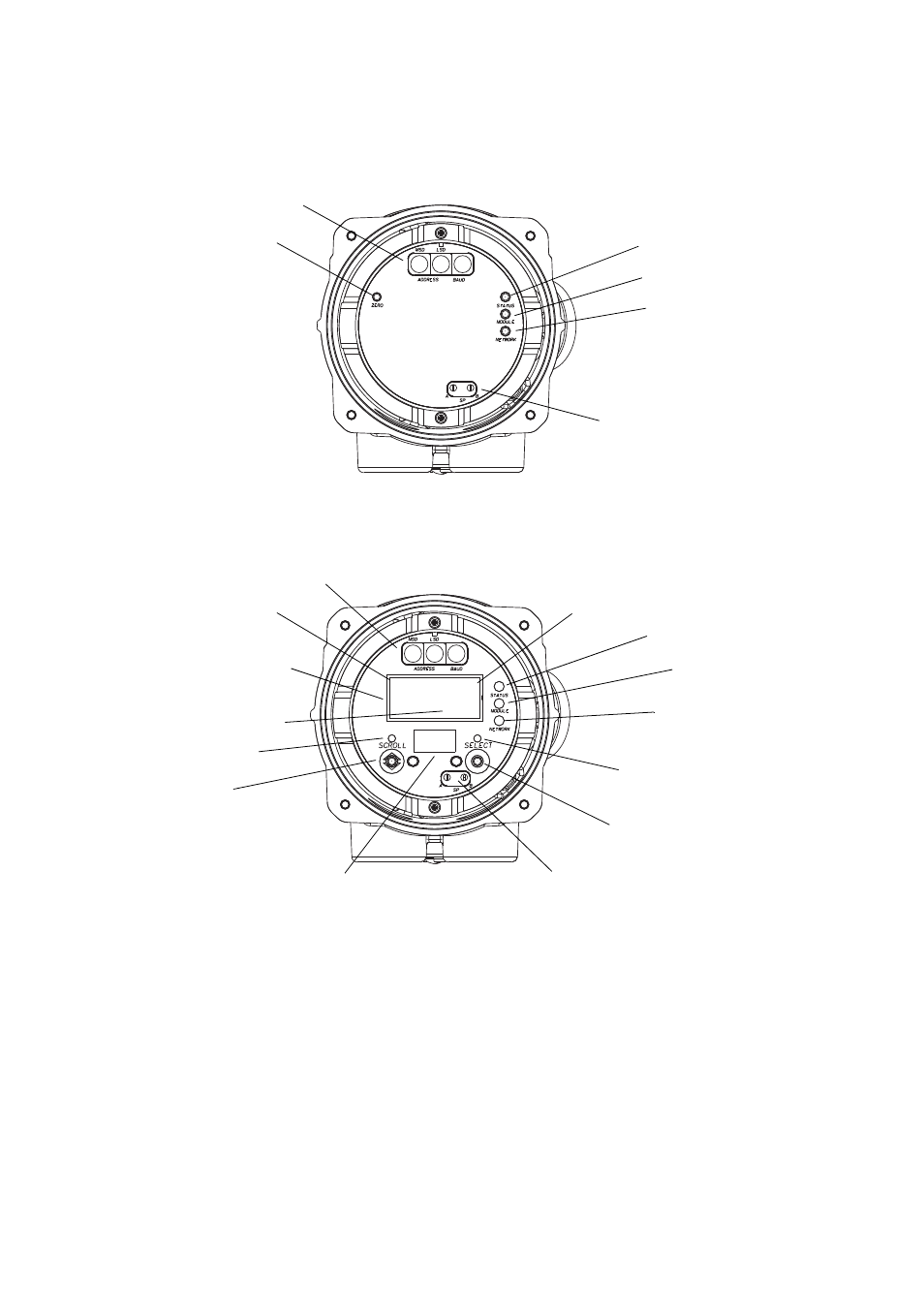

Figure 3-1

User interface – Transmitters without display

Figure 3-2

User interface – Transmitters with display

If the transmitter does not have a display, the transmitter housing cover must be removed to access all
user interface features and functions.

If the transmitter has a display, the transmitter housing cover has a lens. All of the features shown in
Figure 3-2 are visible through the lens, and the following functions may be performed through the
lens (i.e., with the transmitter housing cover in place):

•

Viewing the LEDs

•

Viewing the LCD panel

•

Using the

Select

and

Scroll

optical switches

•

Making a service port connection via the IrDA port

All other functions require removal of the transmitter housing cover.

Status LED

Service port clips

Zero button

Module LED

Network LED

Digital communications

hardware switches

3.237

G/S

FLOW

Current value

Unit of measure

Process variable
