57
Miranda Router Configurator
User’s Guide

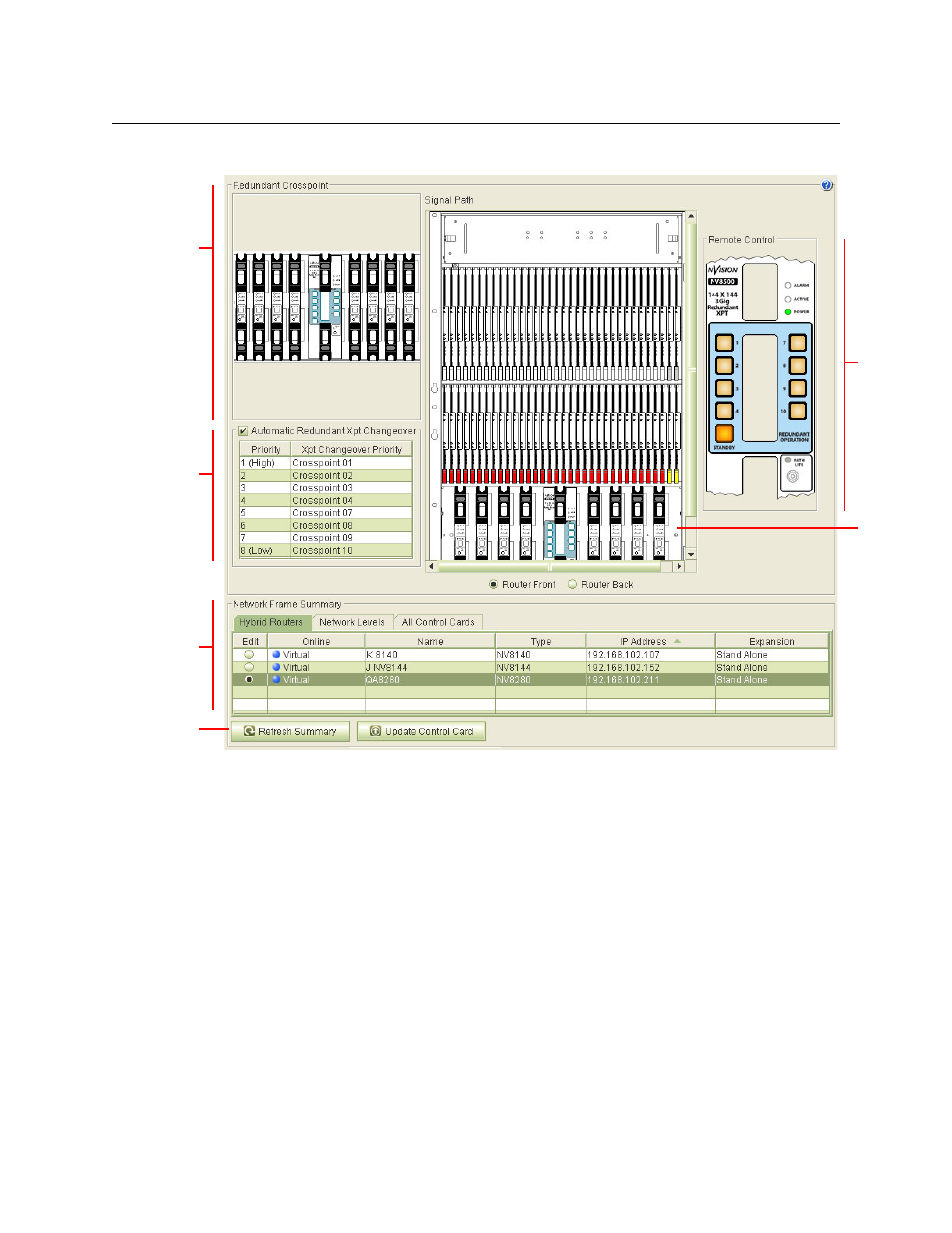

This is a sample ‘Redundant Crosspoint’ page, showing the crosspoints for an NV8280:
Fig. 3-3: Redundant Crosspoint Page (Sample for an NV8280)
There are 6 sections in the page:
• Crosspoint view
In this section you can select a crosspoint card (by clicking on the image of it). When you do,
the crosspoint is highlighted in yellow or green and the I/O slots serviced by the crosspoint
are highlighted in the router view in the center of the page.
You can click on the image of the redundant crosspoint to deselect the selected crosspoint
card. Doing so also unhighlights the I/O slots in the router view.
• Priority List
This section includes a check box and a list.
Check the check box to enable automatic switchover of the redundant crosspoint. Clear the
check box to disable automatic switchover.
When an automatic switchover occurs, the redundant crosspoint substitutes for the failing
crosspoint that has the highest priority. It is here in this priority list that you can specify the
Crosspoint
View
Priority
List
Network
Frame
Summary
Buttons
Redundant
Crosspoint
Buttons
Router
View, to
Show
Affected
Slots
