157
Miranda Router Configurator
User’s Guide
That is, performing certain “mono” take in the ‘Synchronous Audio’ view will create breakaway
conditions in the stereo view. Performing a take in the stereo view will show two resulting mono
takes in the ‘Synchronous Audio’ view.

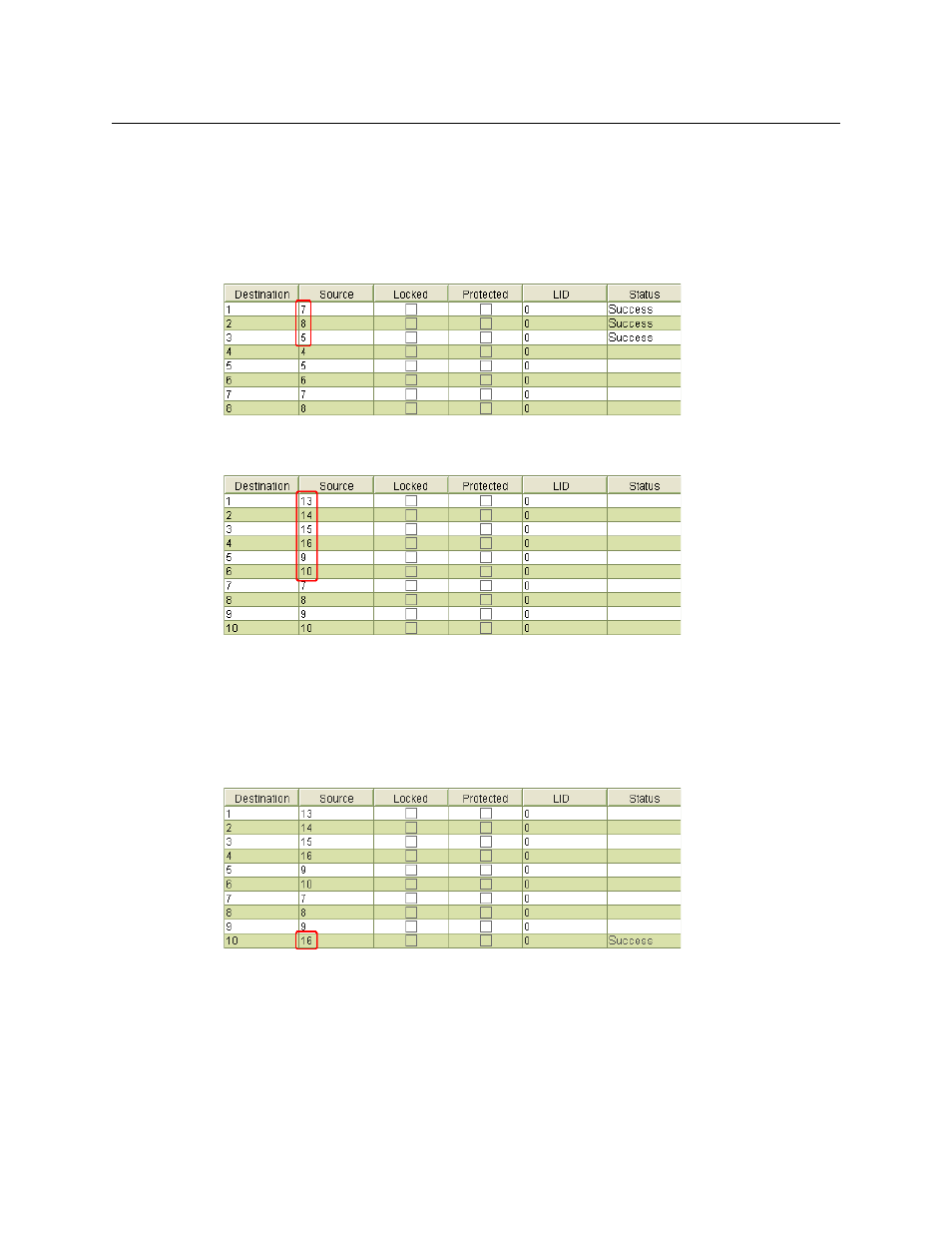

Example 1
Three takes were made in the ‘Synchronous Stereo Audio’ view:
Switching to the ‘Synchronous Audio’ (i.e., mono) view, the corresponding mono ports have
changed:
Stereo pair 7 was taken to stereo output 1. Using the formulas, that is equivalent to mono ports
13 and 14 being taken to outputs 1 and 2 respectively.
The results are similar for ports 15, 16, 9, and 10.
Example 2
One mono take was made in the ‘Synchronous Audio’ view:
