Miranda Router Configurator
User’s Guide
Module Status Page
The ‘Module Status’ page lists all modules that are physically installed in a router frame, and
indicates the state and “health” of each module. The module status page applies only to NV8500
hybrid routers, as evidenced by the ‘Hybrid Routers’ table at the bottom of the page.
Modules listed include “IOXM” cards: input cards, output cards, xpt (crosspoint) cards, and
monitor cards.

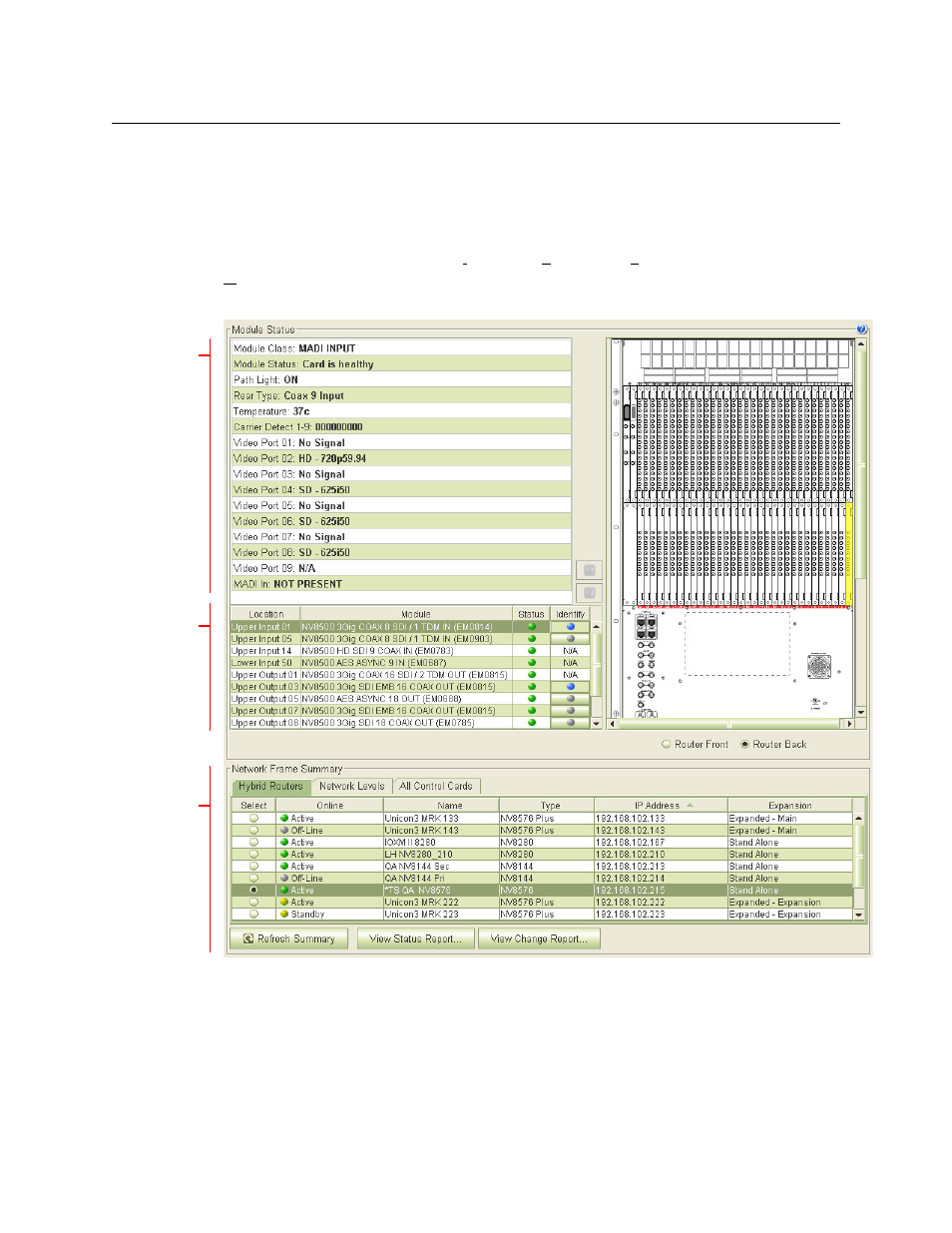

This is a sample page for a sparsely populated NV8576:
The page has 4 regions:
• Network frame summary (in which you can select a router frame).
• List of modules (in the selected router frame).
• Router graphic (front or back view of the selected router frame).
• Status of the selected module.
State of
Individual
Module
List of
Modules
Network
Frame
Summary
