39
Miranda Router Configurator
User’s Guide
• Network Frame Summary.
This section has two tabs: ‘Control Cards’ and ‘Network Levels’. Use the ‘Control Cards’ tab to
select a router control card for the router you want to configure. (The ‘Network Levels’ tab
provides information only.)

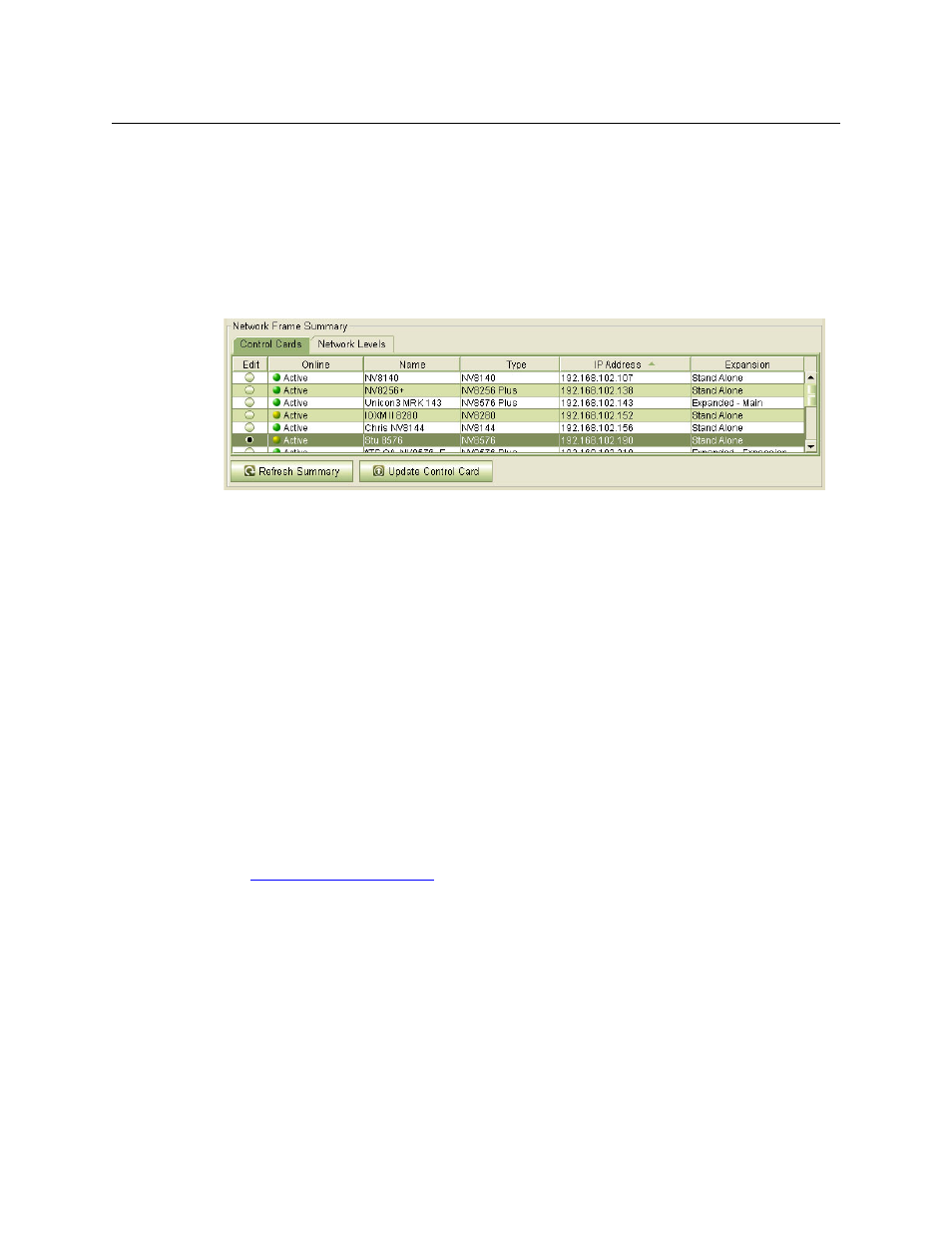

Network Frame Summary
This section has two tabbed lists and two important buttons:
Use the ‘Control Cards’ tab to select a router control card for the router you want to configure.
(The ‘Network Levels’ tab provides information only. Its use is not required to perform any tasks.)
The buttons at the bottom of the section are:
• Refresh Summary
Click this button to ensure that the list of control cards contains current information.
• Update Control Card
Click this button after you have made changes to the configuration of the selected router
control card.
Physical Levels
To view or set levels, select a control card in the ‘Control Cards’ table of the router frame
summary.
When you have selected a control card, MRC displays its current level settings in the ‘Crosspoint
Ranges for Level Settings’ table in the middle of the page.
An invalid signal type can exist only in control cards configured with older versions of MRC.
See Adding and Updating Levels on page 41.
