Grass Valley EDIUS v.5.1 User Manual
Page 230
230
EDIUS — User Reference Guide
Section 3 — Capturing and Importing Clips and Stills
Note
If a reel name was set while defining Input Settings, it will be displayed in the
Batch Capture dialog. See Setting Reel Name
for more informa-
tion.
6.
De-select (remove the check mark) any clips you may want to exclude
from the batch capture.
Note
As clips are added to the batch capture list, they are automatically selected
for inclusion in the batch capture.
7.
Click the
Show Setup Dialog
button to verify the capture settings.
Refer to Capture Settings
for a discussion of appropriate
batch capture settings.
8.
Click the
Capture
button to begin capturing the clips in the batch capture
list.
The Batch Capture dialog (see
for an example) shows the batch
capture operation in progress.

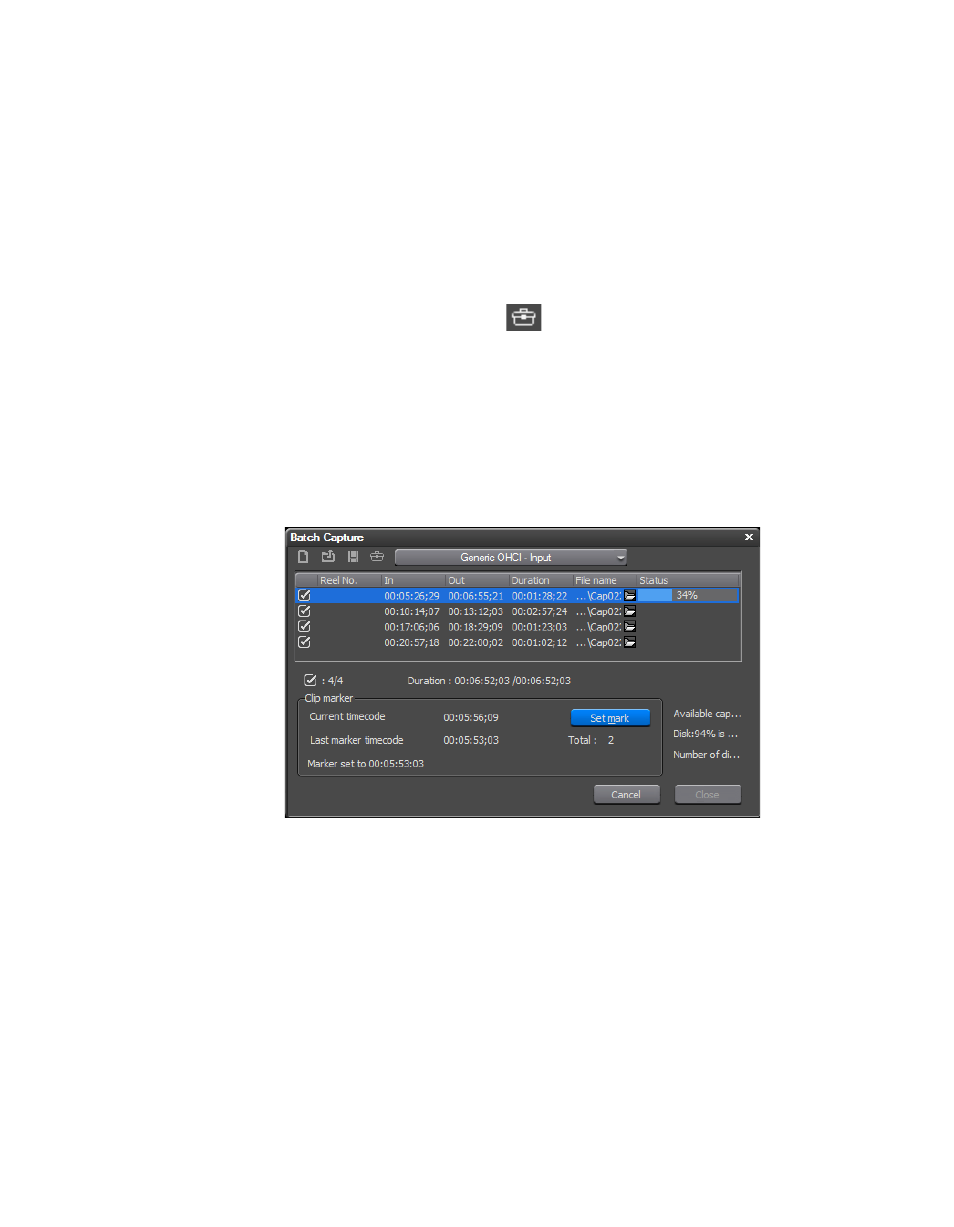

Figure 213. Batch Capture in Progress
9.
While capturing a clip, clicking the
Set Mark
button will place a Clip
marker at the current timecode location and the message “marker set to
00:00:00;00” (00:00:00;00 is replaced by the actual clip timecode) is
displayed for five seconds. See Sequence and Clip Markers
on page 316
for
more information on Clip markers.
Note
The total number of Clip markers set during a batch capture operation is also
displayed in the Batch Capture dialog.
10.
When the batch capture is complete, click the
Close
button to exit the
Batch Capture dialog.
