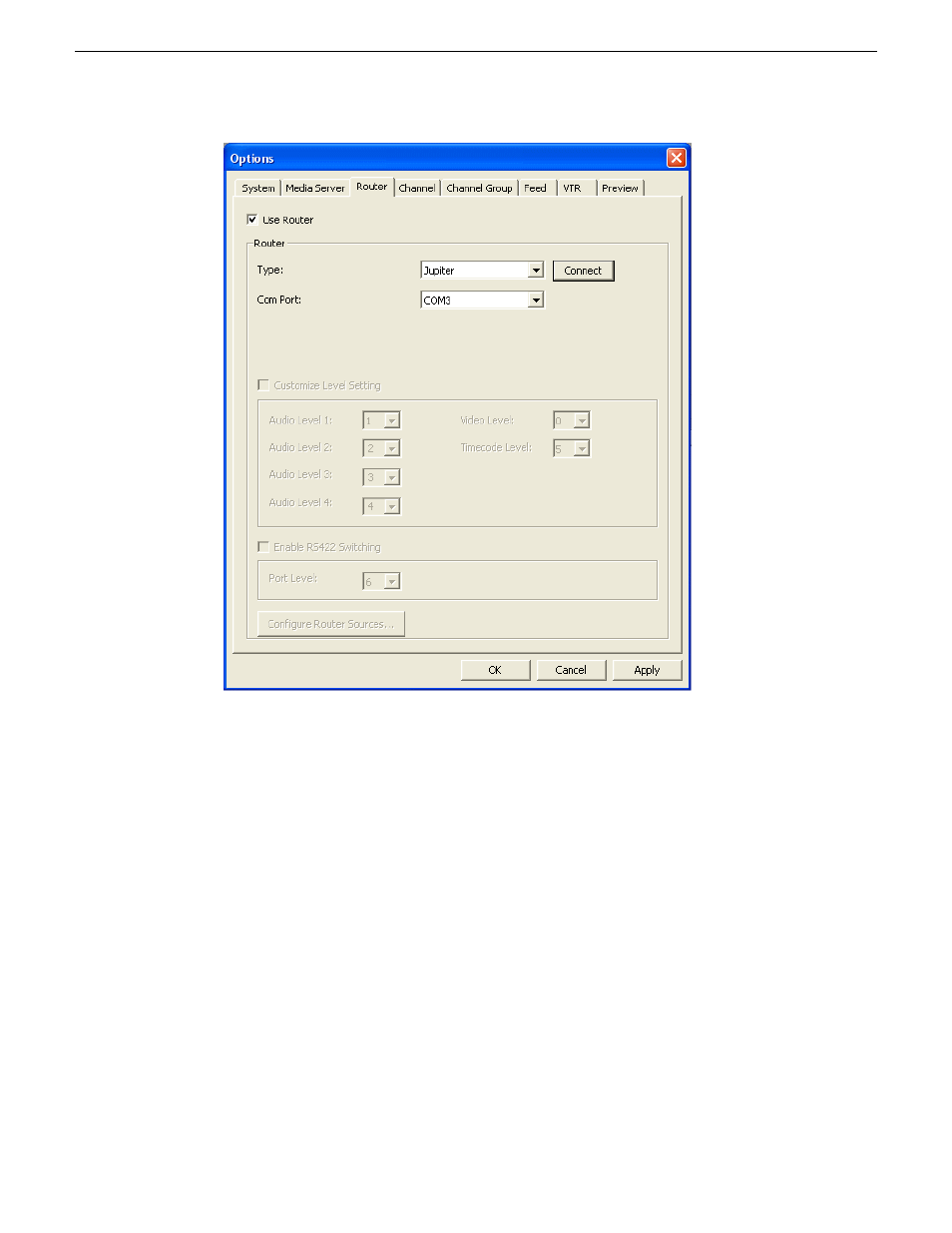

1. Check the Use Router checkbox.
2. For router type, select Jupiter from the dropdown list.
3. For Jupiter with direct router connection via RS422, select either COM1 or COM2
(depending on your setup) from the drop-down list.
4. For Jupiter with connection via the serial hub, you need to configure a virtual COM
port first and select the virtual COM port from the drop-down list.
5. Click Connect .
6. If needed, you can customize the level setting. Select the appropriate level from
the drop-down list for video, audio and timecode.
Select 0 (zero) for the video level if video is the first level in your router control
system, 1 if it is the second level and so on.
7. You can also enable RS422 switching and select the port level. This feature enables
you to switch between VTRs for each channel without having to swap the RS422
cables manually, as Aurora Ingest will switch the RS422 port.
