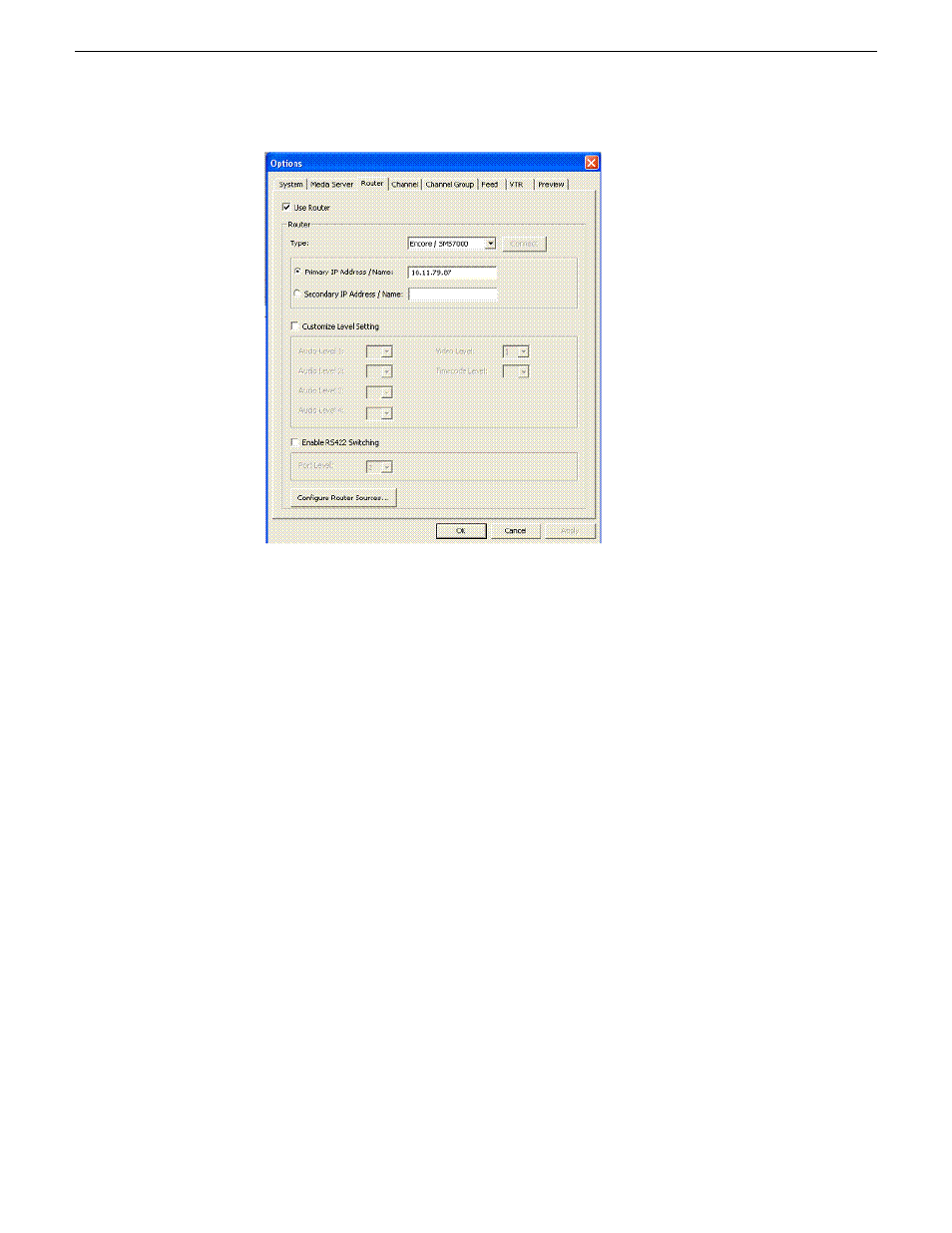

Select 0 (zero) for the video level if video is the first level in your router control
system, 1 if it is the second level and so on.
6. The RS422 switching is available for SMS7000, but not the Acappella router. You
can select the port level from the dropdown list. This feature enables you to switch
between VTRs for each channel without having to swap the RS422 cables manually,
as Aurora Ingest will switch the RS422 port.
Aurora Ingest switches video from the VTR to the video capture card whether
RS422 switching is enabled or not.
7. Click Configure Router Sources to configure router sources that are going to be
used with Aurora Ingest clients.
8. Click Apply to save changes.
Configuring Encore
Encore system can be configured to control the crosspoints of a single routing matrix,
or expanded to control multiple matrices depending on your system needs.
13 August2009 Aurora Ingest System Guide 37
Configuring Aurora Ingest
