347

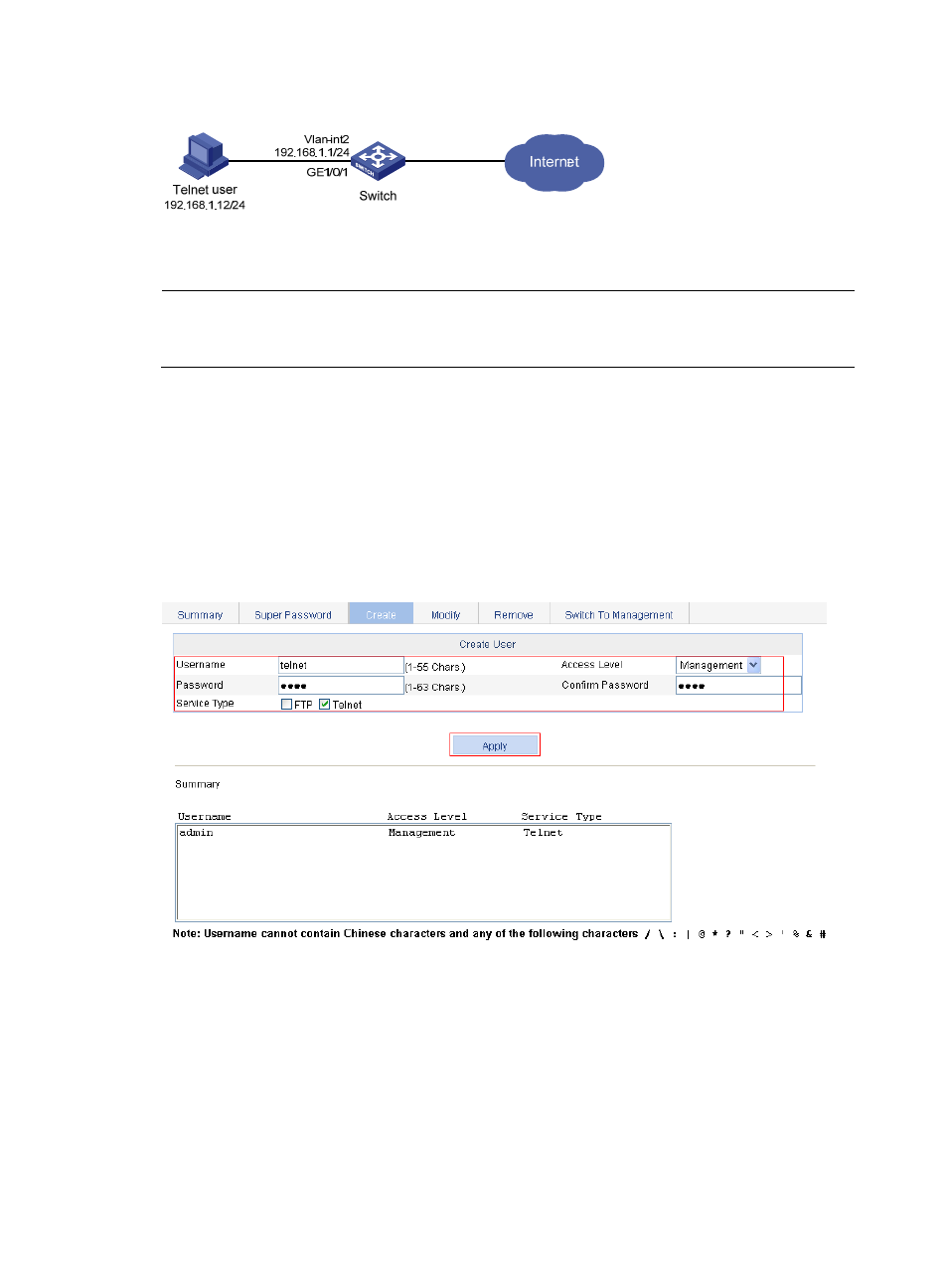

Figure 340 Network diagram
Configuration procedure
NOTE:
Enable the Telnet server function, and configure the switch to use AAA for Telnet users. The configuration
steps are not shown.
1. Assign IP addresses to the interfaces. (Details not shown)
2. Configure a local user:
a. Select Device > Users from the navigation tree.
b. Click the Create tab to enter the local user configuration page.
c. Enter the username telnet, select the access level Management, enter the password abcd, and
select the service type Telnet Service.
d. Click Apply.
Figure 341 Configure a local user
3. Configure ISP domain test:
a. Select Authentication > AAA from the navigation tree.
The domain configuration page appears.
b. Enter the domain name test.
c. Click Apply.
