14

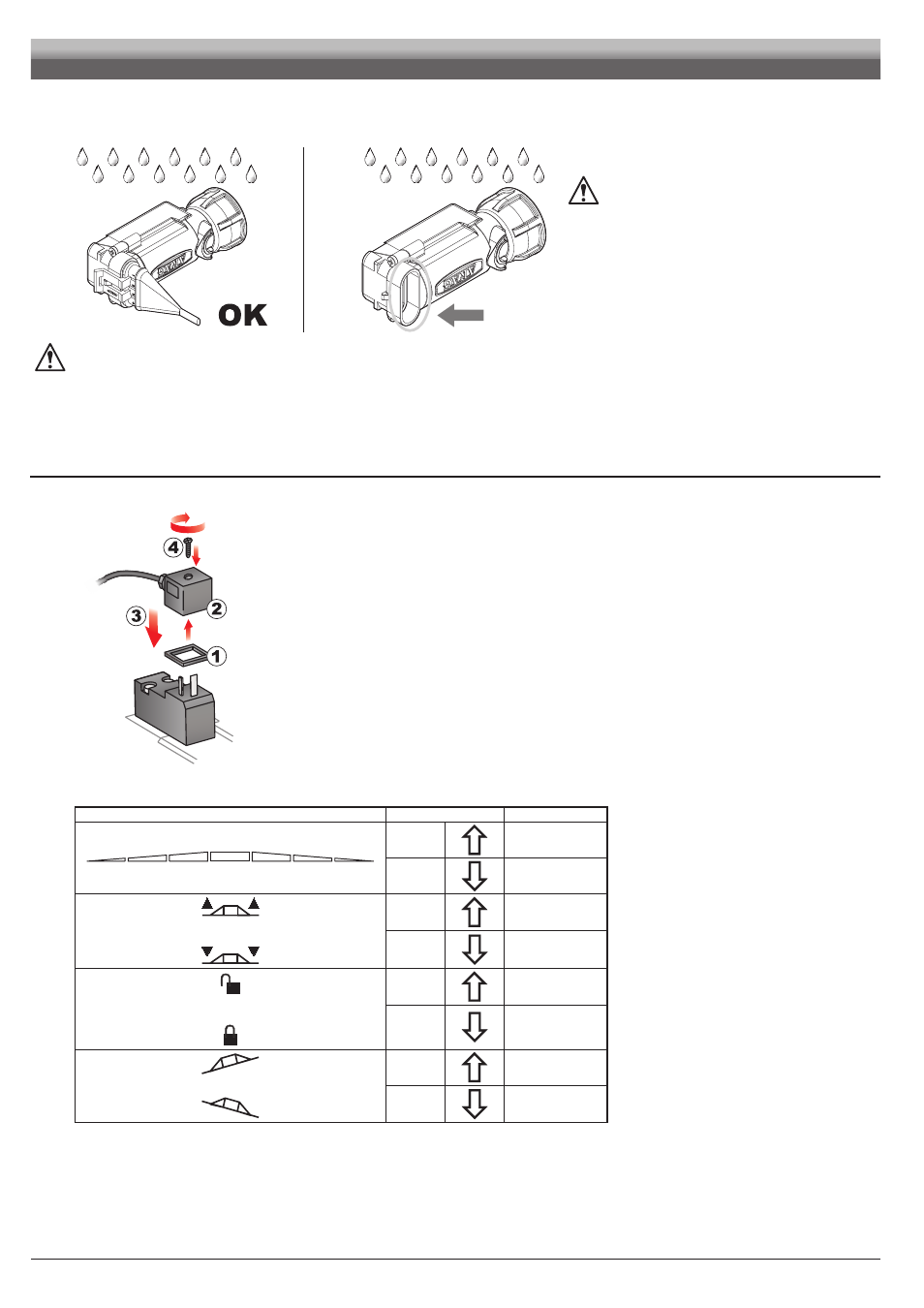

11 Any Seletron connectors left unused must be closed using the suitable plugs (code EC S0075) to be ordered separately.
When the connectors are plugged off, the Seletron is sealed. To avoid damaging the internal components, make sure that when using or cleaning the
system the plugs and the connectors are not bare or inserted incorrectly.
Fig. 20
WARNING!
DO NOT CONNECT THE
SELETRON UNITS.
THE SELETRON ELECTRIC
CONNECTORS MUST BE CONNECTED
AT A LATER TIME, DURING THE
PAIRING PROCEDURE (11 Seletron
connection).
WARNING: TO AVOID DAMAGING ONE OR MORE DEVICES, MAKE SURE THAT NONE OF THE PARTS OF EACH SINGLE
SELETRON (BODY, HARNESSES, ETC.) COME INTO CONTACT WITH MOVING PARTS AT ANY TIME WHEN THE SYSTEM IS IN
USE (INSTALLATION, COMMISSIONING, USE AND SHUTDOWN OF THE FARMING MACHINE).
Arag will not be held responsible for any damage to the system, people, animals or objects caused by failure to follow the
guidelines outlined above.
6.5 Hydraulic valve connection
Bravo 400S can control up to 9 hydraulic functions through double-acting valves.
Fig. 21
Fix the connectors to the relevant valves according to the initials indicated in your assembly general diagram (par. 5.1).
• Position seal ( 1 ) onto connector ( 2 ), then connect the latter pressing it fully home ( 3 ):
During this operation, take special care not to bend valve electric contacts.
• Insert screw inside connector, and screw it (
4 ) until it is tightened.
The function of each switch on the hydraulic function control panel is described below.
• Connect the connector marked with "DD" to the pilot valve, and then the other connectors, as specified on the table:
CONTROL MOVEMENT CONNECTOR
Section movement
1 - 2 - 3 - 4 - 5 - 6
Opening 1 ÷ 6 A
Closing 1 ÷ 6 C
Boom height
Opening AA
Closing AC
Boom lock
Opening BA
Closing BC
Boom leveling
Opening CA
Closing CC
INSTALLATION
NO!
