LonScanner FX Protocol Analyzer User’s Guide 47
1. Select Edit → Bookmarks to open the Bookmarks dialog, as shown in Figure
36.

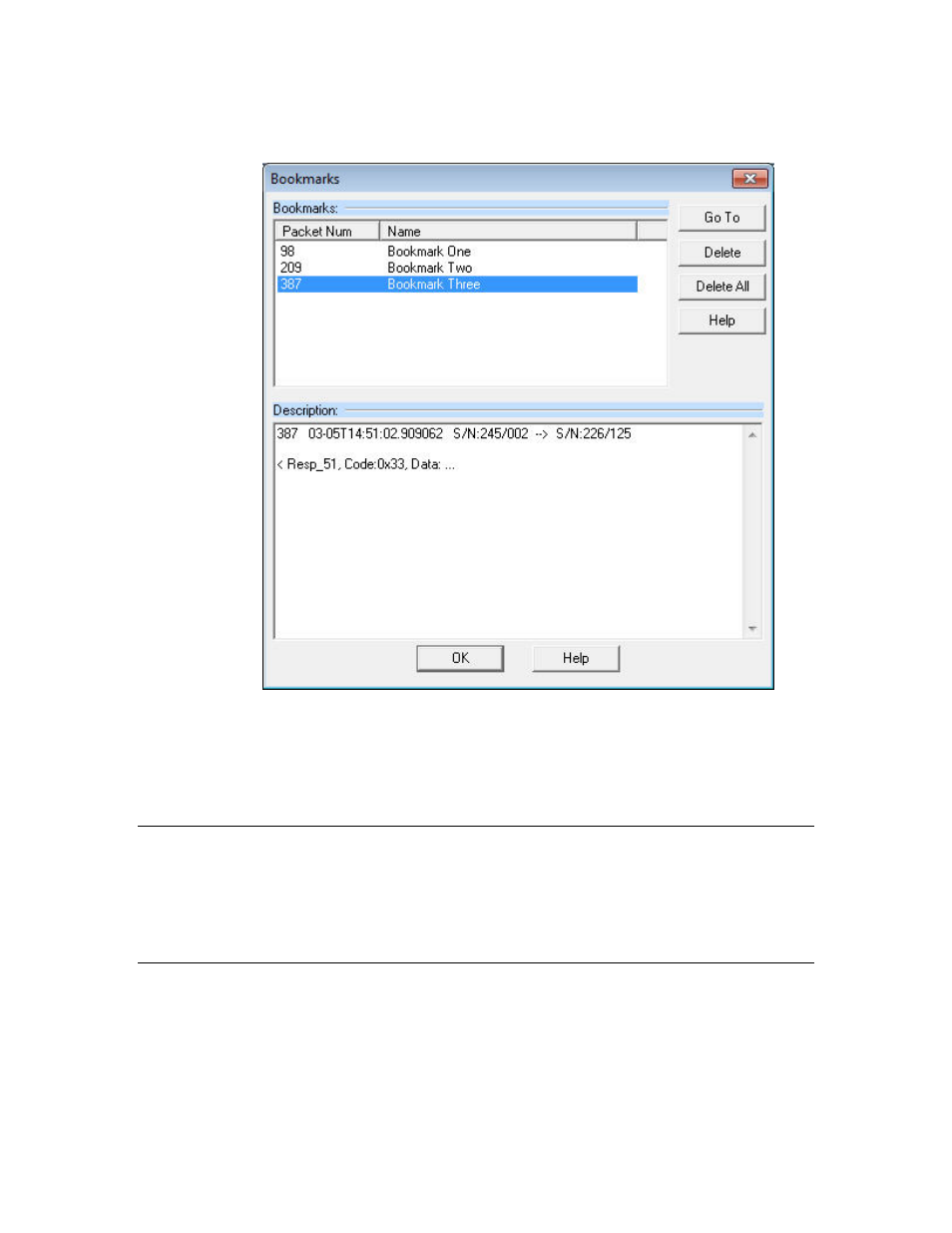

Figure 36. Bookmarks Dialog
2. The bookmarks are listed at the top of the dialog, sequentially by packet
number. Click a bookmark in the list to select that bookmark, and then click
Go To to scroll the Packet Log to that log entry. Or, click Delete to remove
the log entry from the log. To remove all packets at once, click Delete All.
Formatting the Packet Log
There are several ways to format the data that is displayed in the Packet Log tab.
You can select the fields to be displayed in the Packet Log, and you can change the
formatting for a field. You can also change the color that is used to highlight
bookmarked packets.
Selecting Data Fields
You can select the fields that are displayed in the Packet Log by performing the
following steps:
1. Select View → Select Columns to open the Select Columns dialog, as shown
in Figure 37 on page 48.
