LonScanner FX Protocol Analyzer User’s Guide 23
Note: The data displayed on the statistics tabs is calculated based on the packets
that pass the global and device filters and are written to the current log file.
Packets that are discarded because they do not meet the current filter
requirements are not used in the statistics calculations.
Viewing General Statistics
Select the General Statistics tab to view a variety of network statistics, including
the total number of packets collected during the current session, the average
packet size, and the number of packets received per second. You can also view
maximum and cumulative information, such as the maximum and average
bandwidth utilization percentage and the maximum and average error rate
during the session. See the online help for descriptions of the data fields
displayed on the General Statistics tab.

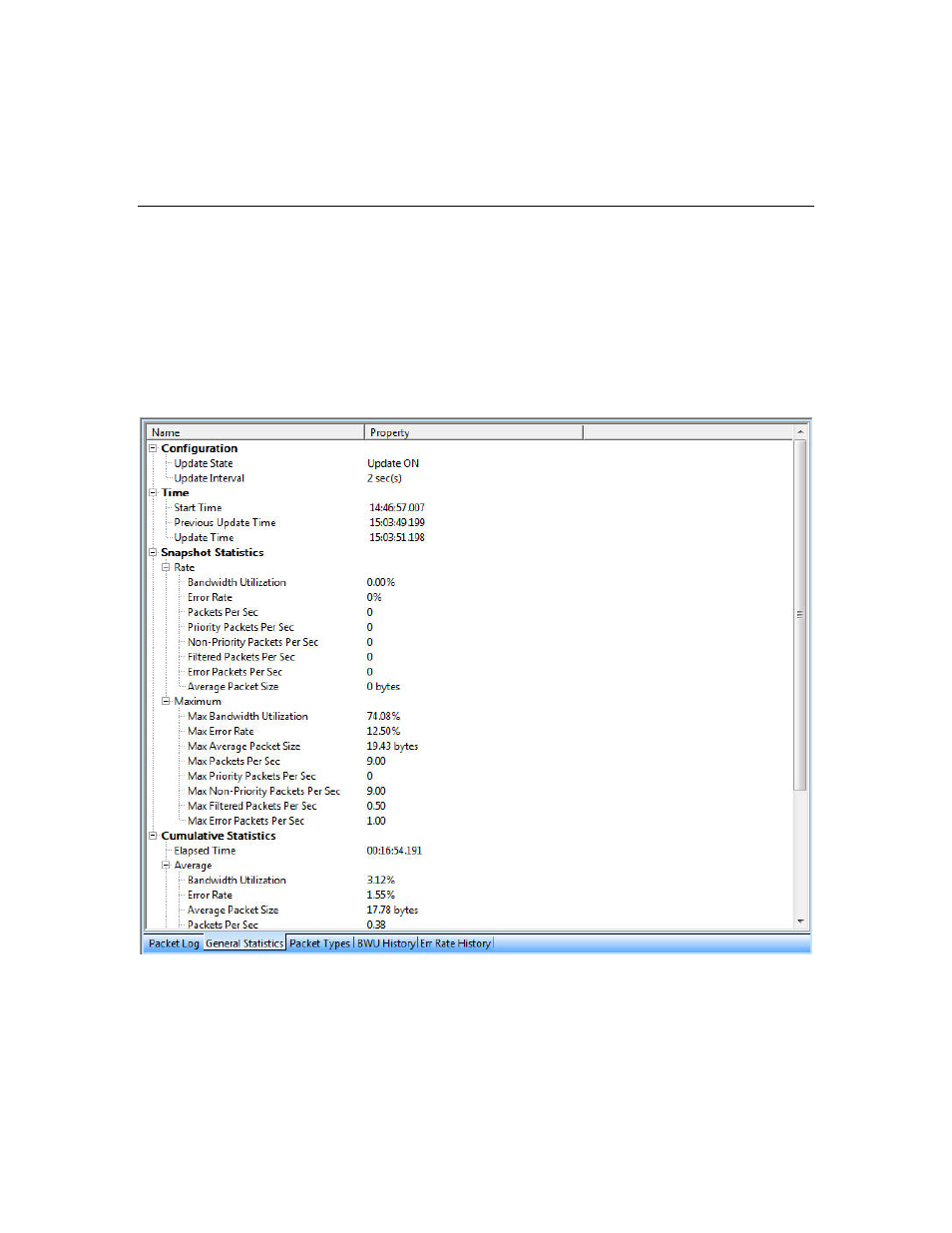

Figure 12 shows the General Statistics tab with example data.
Figure 12. General Statistics Tab
You can control the rate at which the statistics on the display are updated by
setting the general update interval with the statistics options dialogs. See
Setting Statistics Options on page 26 for more information.
