40 Logging Data

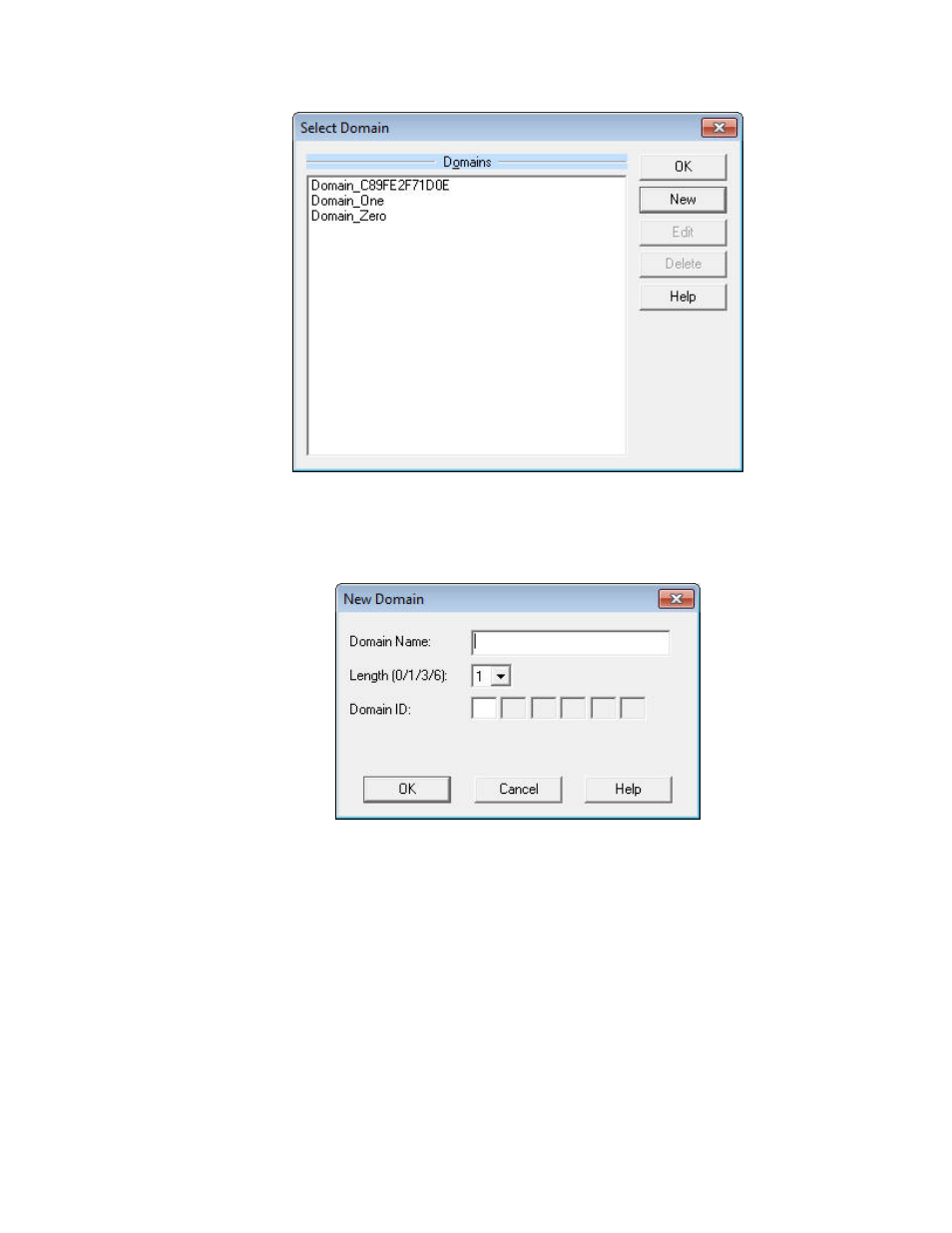

Figure 31. Select Domain Dialog
2. The Select Domain dialog lists the domain names that are currently defined
in your network. To create a new domain name, click New. The New
Domain dialog opens, as shown in Figure 32.
Figure 32. Edit Domain Dialog
3. Enter a name for the domain in the Domain Name field, and set the domain
ID and length for the domain. See the online help for more information about
these fields.
4. Click OK to close the New Domain dialog and return to the Select Domain
dialog. The new domain name is listed in the dialog. You can edit the
domain name by selecting it and clicking Edit. You can delete the domain
name by selecting it and clicking Delete.
5. Click OK to close the dialog.
