LonScanner FX Protocol Analyzer User’s Guide 37
4. Enter the group ID for the group in the Group Number field, and enter the
name for the group in the Group Name field.
5. Click OK to close the New Group dialog and return to the Select Group
dialog.
6. The new group name is listed in the Groups list. You can edit the group
name by selecting it and clicking Edit. You can delete the group name by
selecting it and clicking Delete.
7. Click OK to close the dialog.
Creating Device Names
You can create or change a device name based on ISO/IEC 14908-1 subnet and
node IDs. To create or edit a device name, perform the following steps:
1. Select Names → Edit Devices to open the Select Device dialog, as shown in
Figure 27.

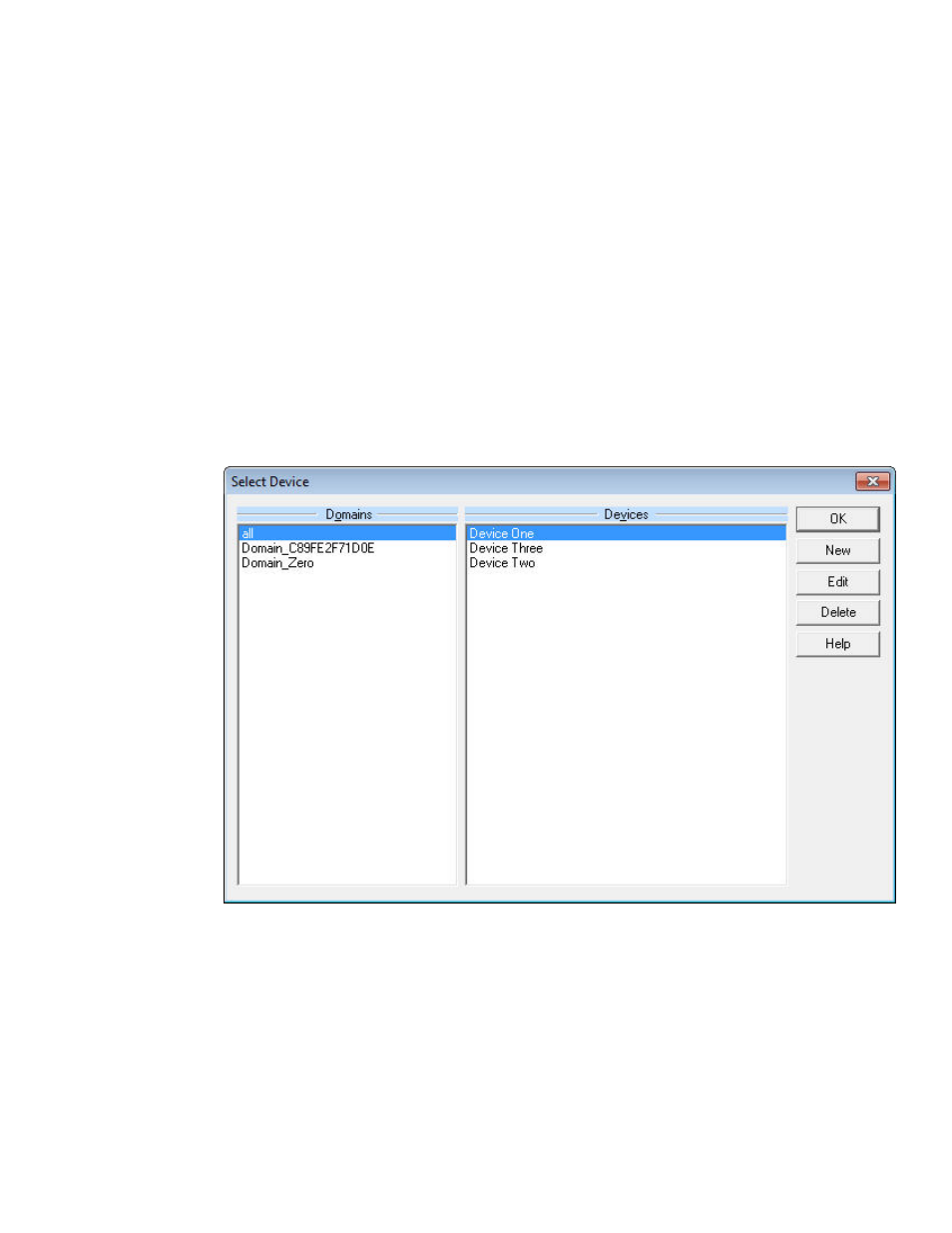

Figure 27. Select Device Dialog
2. Select a domain from the Domains list. The devices that have been assigned
names in that domain are listed in the Devices list. To add a new device
name, click New. The New Device Data dialog opens, as shown in Figure 28
on page 38.
