Page 26

Logging Data

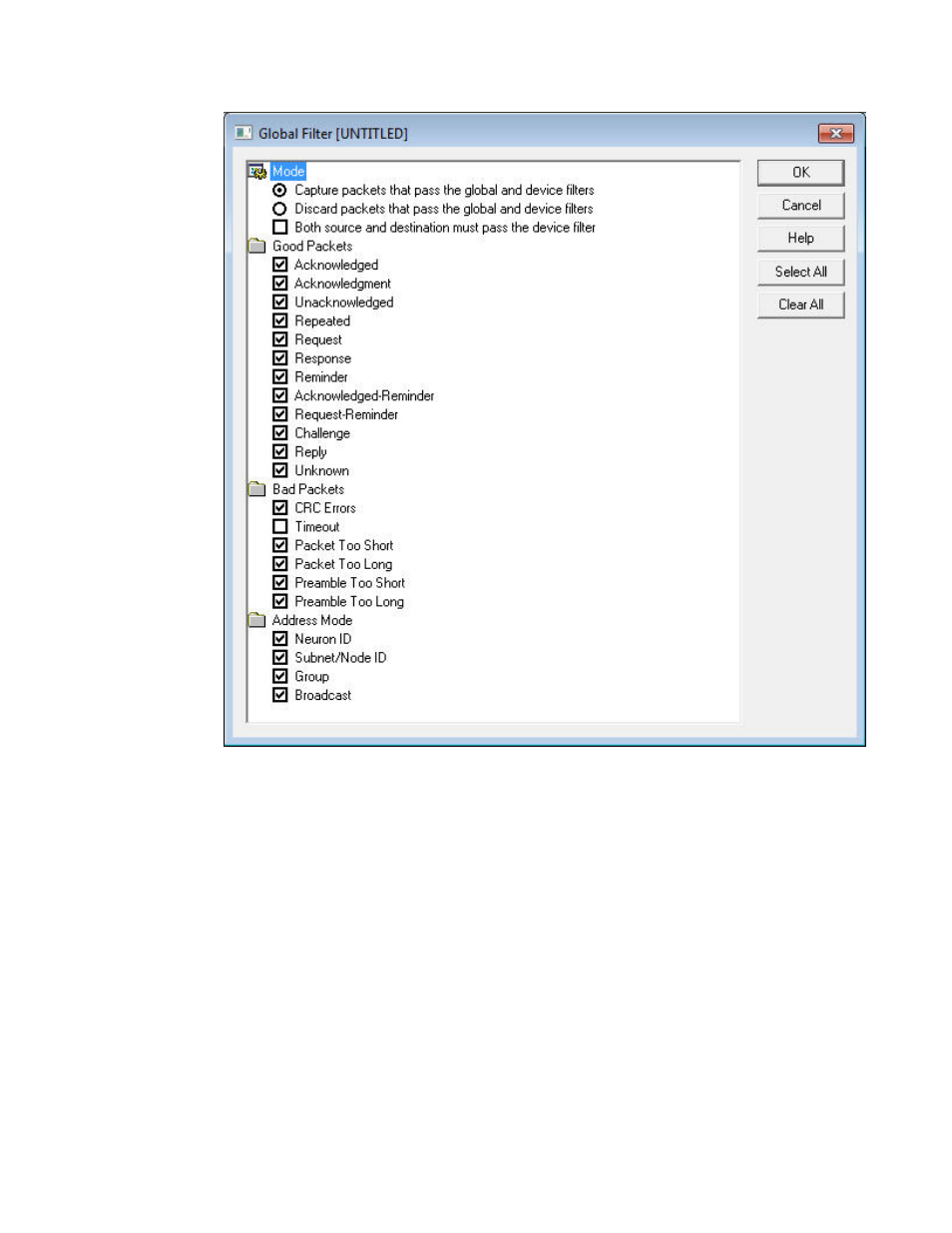

Figure 11. Global Filter Dialog

6. Under Mode, select Capture packets that pass the global and device

filters to write packets that pass the requirements of the global and

device filters into the Packet Log. Select Discard packets that pass the

global and device filters to write packets that do not pass the

requirements into the Packet Log.

7. Select the Both source and destination must pass the device filter

checkbox to verify that each packet meets the filter settings for both the

source device and the destination device. This setting allows you to filter

traffic between a specified pair of devices.

8. Under Good Packets, Bad Packets, and Address Mode, select which

packet types should pass the global filter by selecting or clearing the

appropriate checkboxes. You can select all packet types by clicking Select

All, and clear all packet types by clicking Clear All. See the online help

for information about each of the packets types listed on the Global Filter

dialog.
