90 Controlling a Street Lighting Network

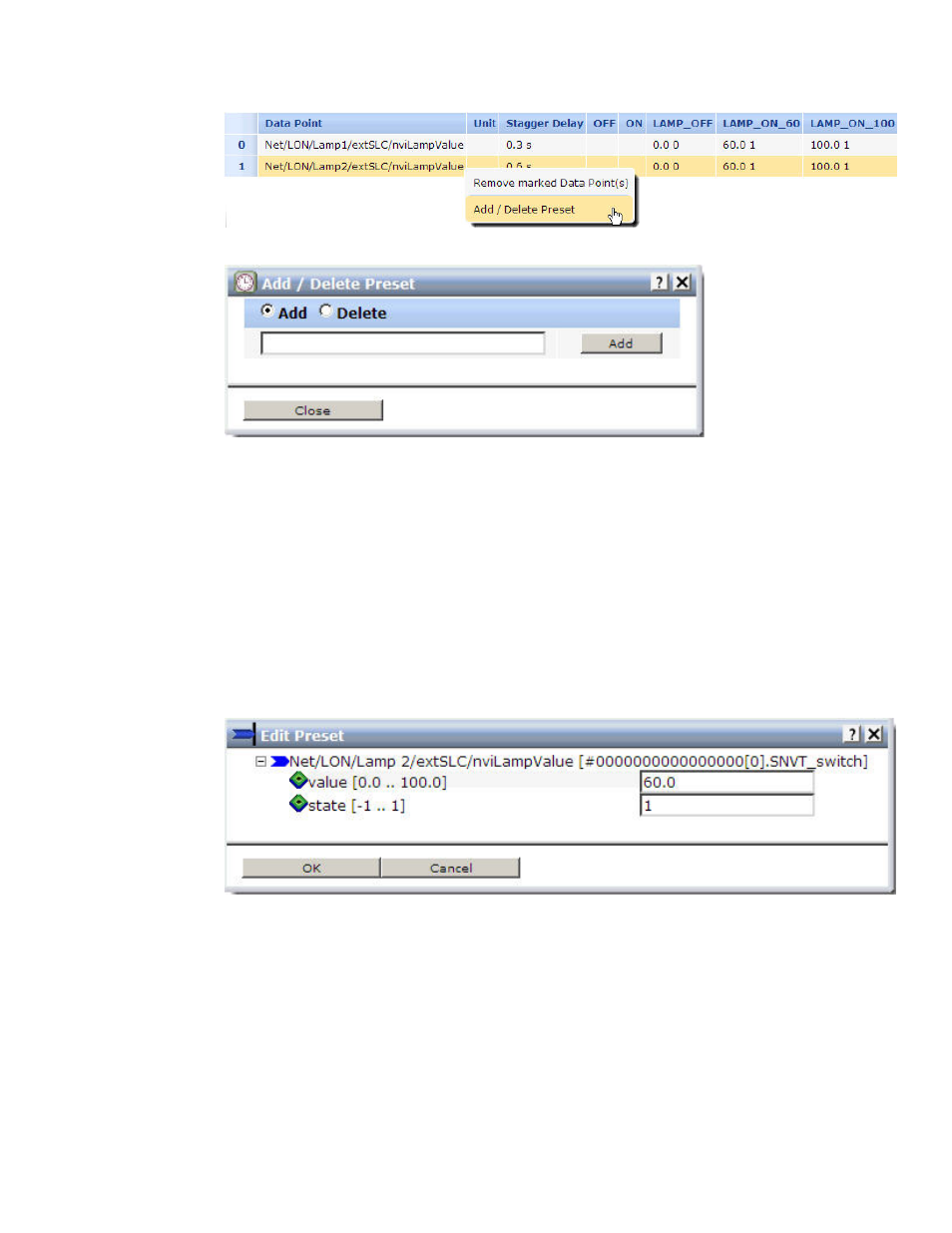

b. The Add/Delete Preset dialog opens.
• To create a new preset, select the Add radio button, enter
the name of the new preset in the field, and click Add.
The new preset appears without a value in the Scheduler:
Data Points Web page.
• To delete an existing preset, select the Delete radio
button, select the preset to be deleted from the dropdown
list box, and click Delete. The preset is removed from the
Scheduler: Data Points Web page.
c. Click Close.
8. Optionally, you can edit the values of existing presets:
a. Click the preset value that you want to edit. The Edit Preset
dialog opens.
b. Enter the value (or values, if you are editing the preset of a
structured data point) for the preset.
c. Click OK.
9. Click Submit.
