The anatomy of the field pc – Juniper Systems Archer Reference Guide User Manual
Page 11
4

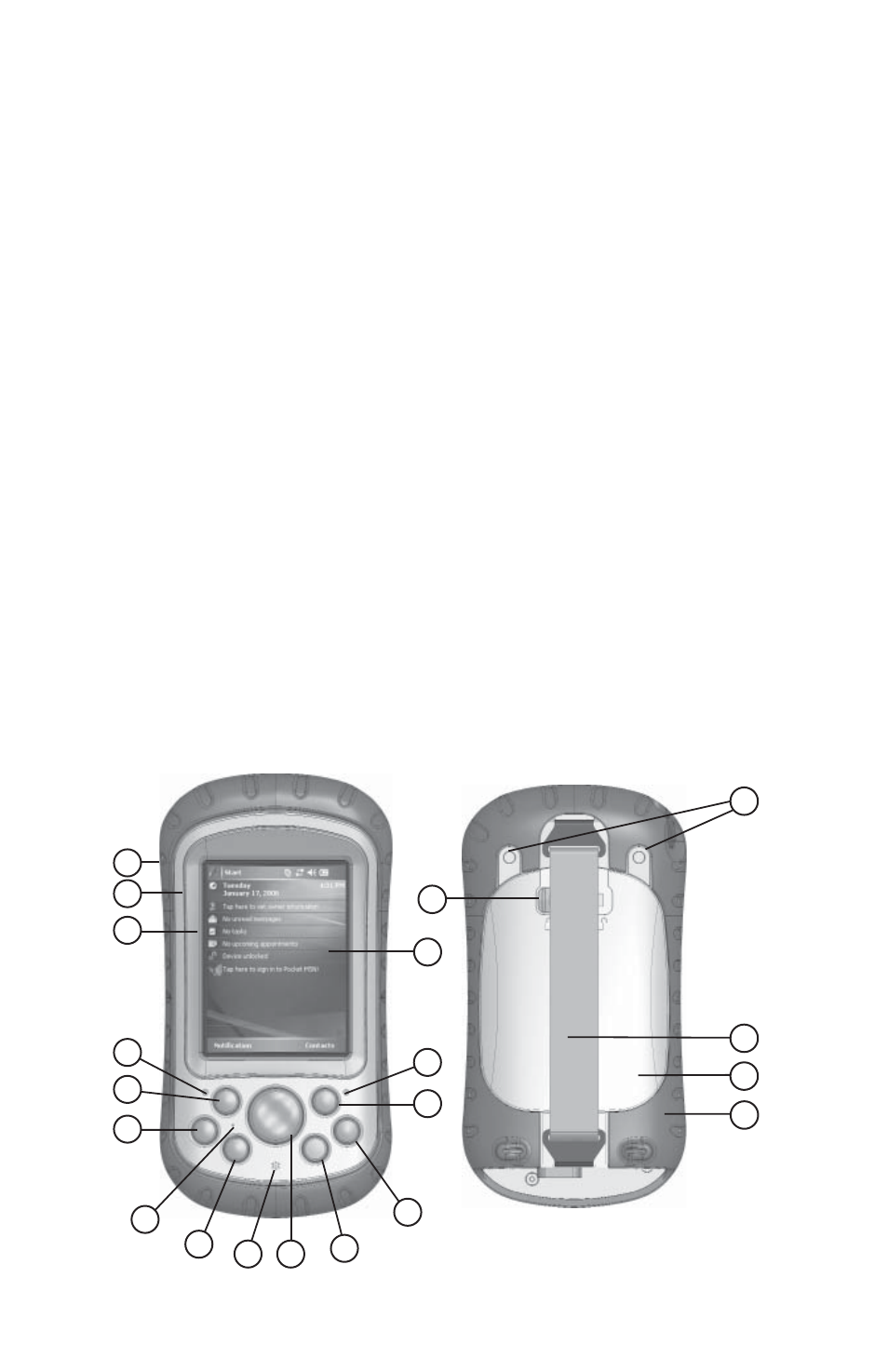

1 Elastomer
overmold
2 Magnesium case front
3 Display bezel
4 Charge LED
5 Start menu button
6 Applications Manager
button
7 Microphone
8 Today screen button
9 Speaker
10 Four-way
directional
button
11 Power button
12 Context menu button
13 Enter
button
14 Notifi cation LED
15 Touchscreen/display
16 Accessory attachment
points (5 cm. center
to center 8-32 UNC
thread)
17 Battery door latch
18 Hand strap
19 Battery door
20 Body molding
16
18
17
19
4
2
3
7
8
9
2
13
15
1
5
6
10
11
12
14
20
The anatomy of the
Field PC
This section illustrates the diff erent parts of the Field PC.
For instructions on using the hardware, see Chapter 3.
For instructions about caring for or cleaning the diff erent
parts, see Chapter 10.v
