CHAPTER 3: CONTROL PANEL OPERATION
PR2: 05/09/12 Page 39 of 162
Benchmark 1.5LN Dual-Fuel Low NOx Boiler
Operation and Maintenance Manual
OMM-0041_0C
GF-121
AERCO International, Inc. • 100 Oritani Dr. • Blauvelt, NY 10913 • Ph: 800-526-0288

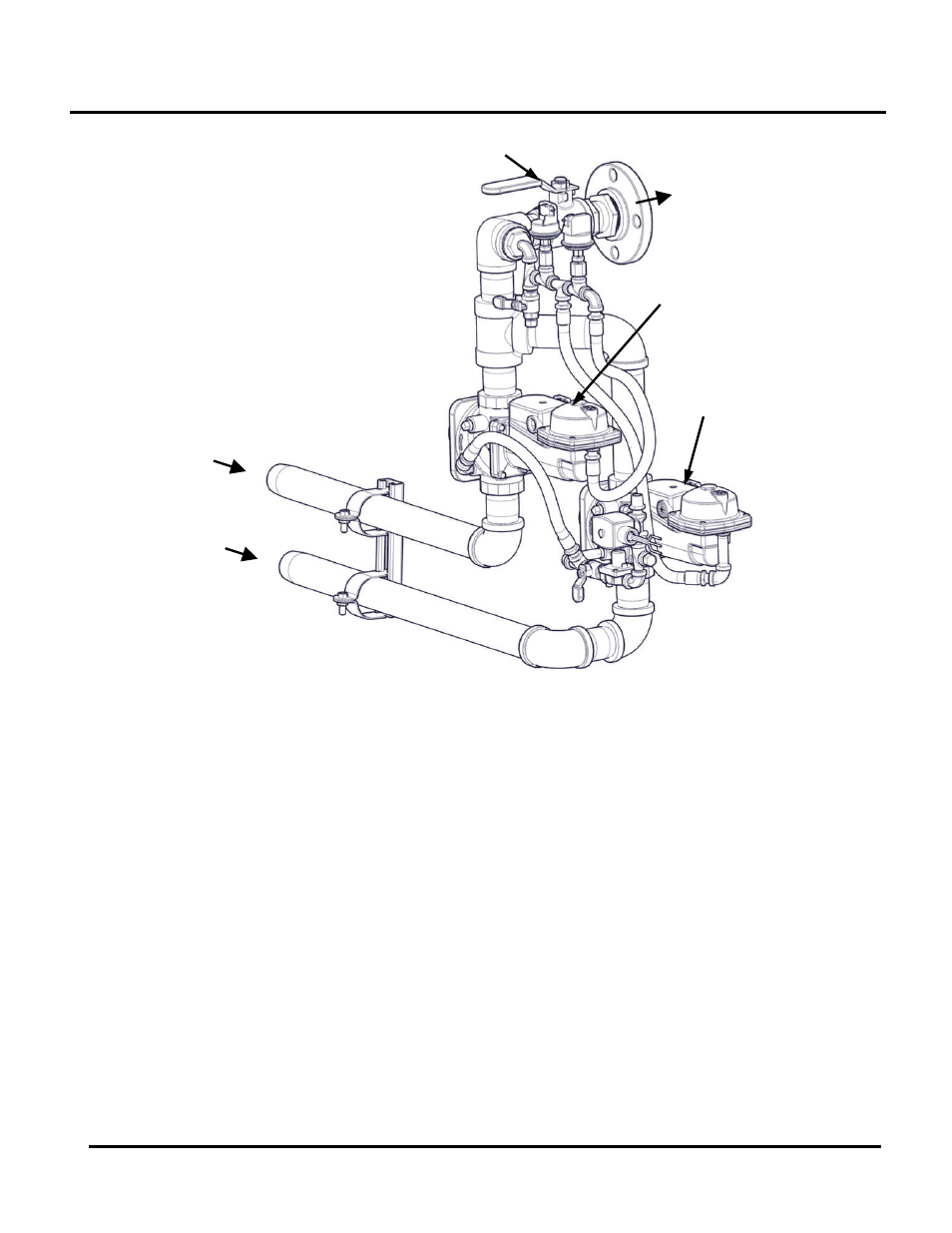

Figure 3-3: SSOV Location
4. Next, the blower proof switch on the Air/Fuel Valve (Figure 3-5) closes. The display
will show Purging and indicate the elapsed time of the purge cycle in seconds.
5. Upon completion of the purge cycle, the Control Box initiates an ignition cycle and the
following events occur:
a) The Air/Fuel Valve rotates to the low-fire ignition position and closes the ignition
switch. The dial on the Air/Fuel Valve (Figure 3-6) will read between 25 and 35 to
indicate that the valve is in the low-fire position.
b) The igniter relay is activated and provides ignition spark.
c) The gas Safety Shut-Off Valve (SSOV) is energized (opened) allowing gas to flow
into the Air/Fuel Valve.
MANUAL SHUTOFF
VALVE
NATURAL
GAS SSOV
PROPANE
GAS SSOV
NATURAL
GAS INLET
PROPANE
GAS INLET
TO
AIR/FUEL
VALVE
