APPENDIX K: BMK 1.5 DUAL-FUEL SWITCHOVER INSTRUCTIONS
PR2: 05/09/12 Page
157 of 162
Benchmark 1.5LN Dual-Fuel Low NOx Boiler
Operation and Maintenance Manual
OMM-0041_0C
GF-121
AERCO International, Inc. • 100 Oritani Dr. • Blauvelt, NY 10913 • Ph: 800-526-0288
PROPANE
INLET
NATURAL
GAS INLET
PROPANE
SSOV
NATURAL
GAS SSOV
TO AIR/FUEL
VALVE
MANUAL
SHUT-OFF
VALVE
RSI
REGULATOR
1/4" BALL VALVE
CLOSE FOR PROPANE
OPERATION
OPEN FOR NAT. GAS
OPERATION
FLEX GAS LINE TO
2
ND
SOLENOID
VALVE
RSI SOLENOID
VALVE

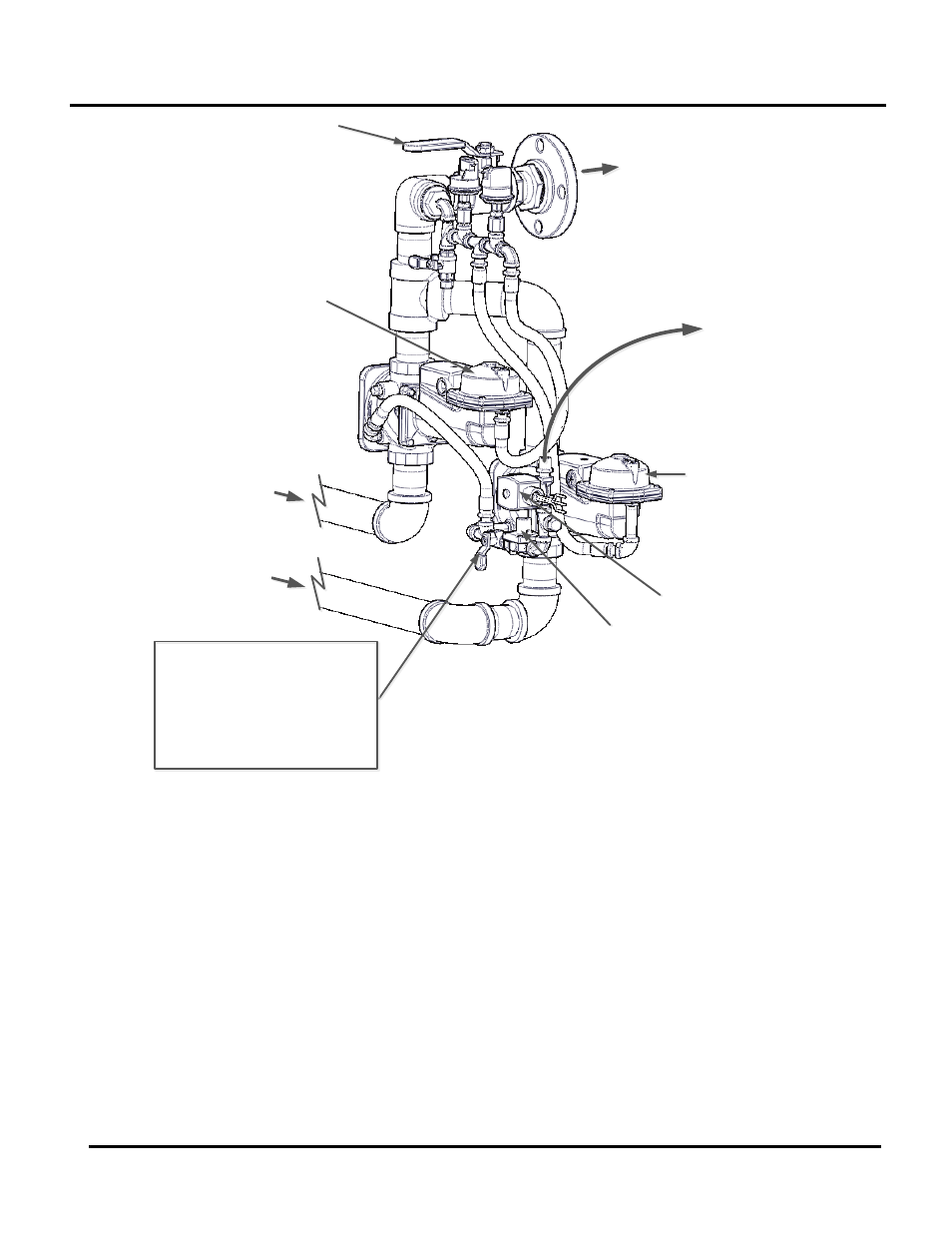

Figure K-2: Ball Valve Positions for Propane & Natural Gas Operation
