System functions
6
10
12
21
26
If Point Codes and Attributes
need to be stored , it must
be defined in the recording mask. If
attributes are defined in the display
mask, they can directly be entered in
the measuring dialog.
The standard REC masks
are different from the
standard display mask. The REC
mask does not include the reflector
height, for example. If the heights of
targets are to be inspected in the
office, the attribute "Refl. Height"
must be added to the recording
mask.
Setting the recording mask (RMask), cont.
Activates the function from the "DIS-
PLAY MASK" dialog.
Three DSP masks can be defined.
The 12 lines can be set up by using
the parameters available from the
lists.

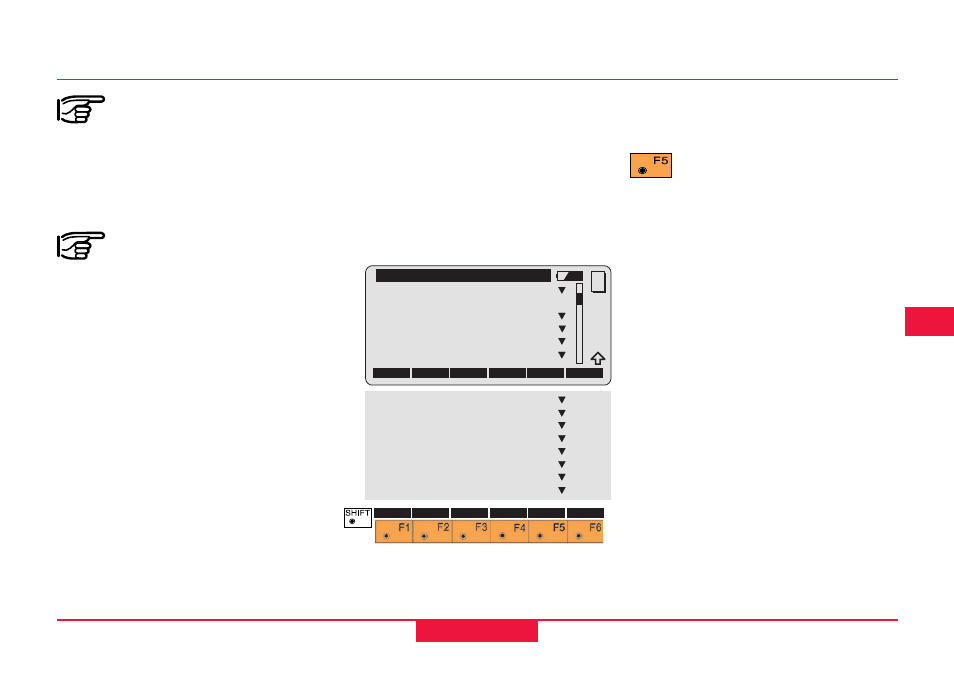

Setting the display mask (DMask)
Each line can display any and all of
the available display data.
Sets the current DSP mask to
"Standard", i.e. to the DSP
masks originally defined.
\Displ.mask definition
Define
:
Displ.Mask 1
Mask name
:
Standard 1
1st word
:
Point Id
2nd word
:
Hz
3rd word
:
V
4th word
:
Slope Dist.
CONT
DEFLT
MC
5th word
:
Horiz.Dist
6th word
:
Elev.Diff.
7th word
:
East
8th word
:
North
9th word
:
Elev.
10th word
:
ppm/mm
11th word
:
(empty)
12th word
:
(empty)
QUIT
