Guide Light EGL

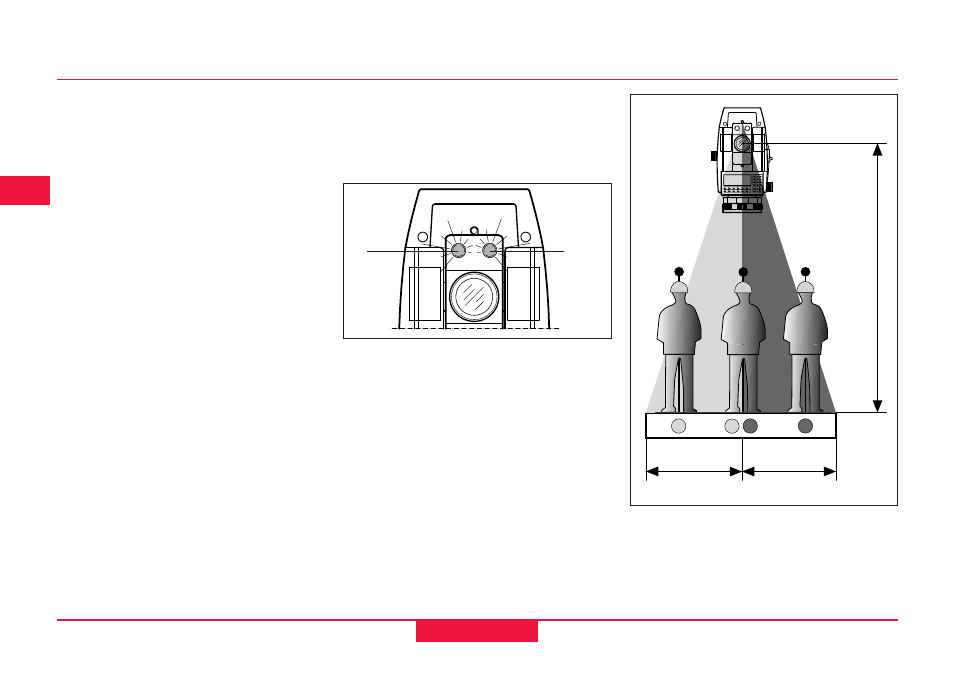

The optionally available Guide Light
EGL consists of two coloured
flashing lights in the telescope of the
total station.
1 Flashing red diode
2 Flashing yellow diode
All TPS1100 instruments can be
equipped with this Guide Light. The
person at the prism can be guided by
the flashing lights directly to the line
of sight. It becomes much easier to
set out points.
1 2
1100Z02
1100Z03
6 m
(20 ft) 6 m
(20 ft)
100 m (330 ft)
If the laser swath detects a prism, the
reflection is detected by the receiver
and the rotation of the instrument is
stopped. Afterwards a fine aiming in
vertical direction is performed by the
ATR.
PowerSearch can be started at any
time by pressing the PowerSearch
function key (PS) in the menu PROG.
If RCS mode is activated, then
PowerSearch can be switched on
during an ATR prism search.
Working range: 5-200 m
Swath divergence Hz: 0.025 gon
Swath divergence V: ±20 gon
