Leica Geosystems TPS1100 Professional Series - User Manual - Manual (Page 43)

43
TPS1100 - User Manual 2.2.1en Checking and adjusting
6
10
12
21
ATR collimation, continued
Stores the new values.
Repeats the ATR1 error
determination procedure.
Leaves the old values
unchanged.
No further repeat measure-
ments are required. The old
and the newly-defined ATR-collima-
tion errors become optional, and are
displayed together with the line-of-
sight errors (c) and the V-index errors
(i).
The calibration can be
repeated as often as
necessary until the required level of
accuracy is obtained. The result is the
mean of all the measurements taken.
It is recommended that at least two
measuring sequences be carried out.
The calibration process is
interrupted. The old values
will be left intact.
If the value of the ATR hori-
zontal and vertical
collimation errors exceeds 2' 42"
(0.05 gon), repeat the measurement
procedure.
Similarly, if the value of the V-index
error (i) exceeds 54' (1 gon) or if the
value of the line-of-sight error (c)
exceeds 5' 24" (0.1 gon) , the
measurements are to be repeated.
If these values are often exceeded,
please contact service.

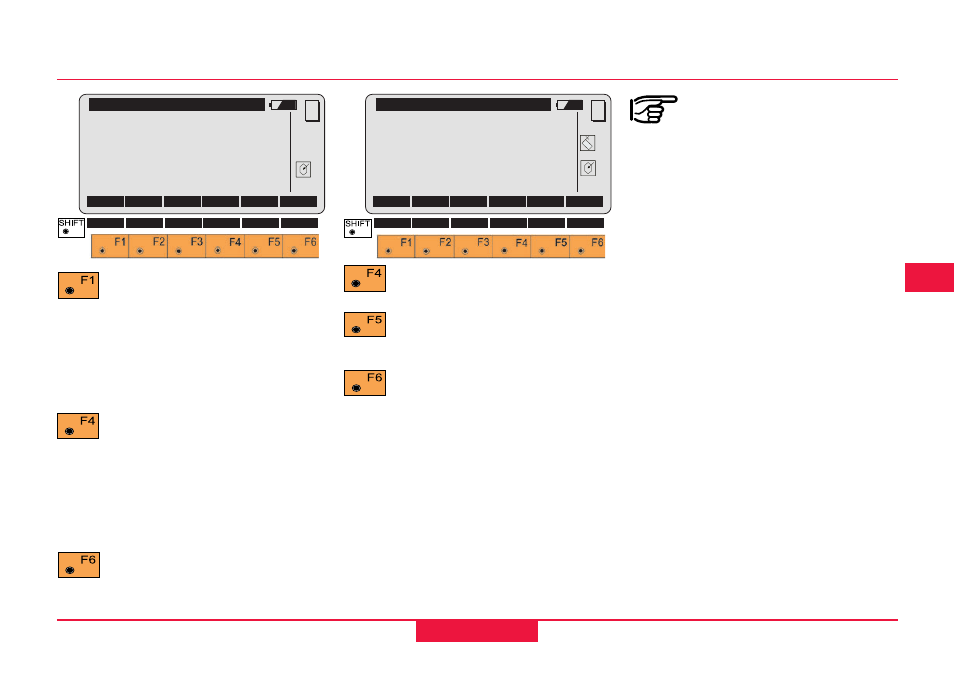

CAL\ ATR Accuracy
No. of Meas: 2
σσσσσ ATR Hz : 0°00'05"
σσσσσ ATR V : -0°00'08"
σ σ σ σ σ i V-Ind. : -----
σ σ σ σ σ c Hz-col : -----
Take more measurements?
CONT MORE ABORT
MC
CAL\ATR Collim. Errors
old new
ATR Hz : 0°00'08" 0°00'05"
ATR V : 0°00'10" 0°00'09"
i V-ind : 0°00'00" 0°00'10"
c Hz-c : 0°00'10" 0°00'02"
Accept new value(s)?
YES RETRY NO
MC
