TPS1100 - User Manual 2.2.1en Preparing to measure, setting up
6
0
2
Switches the laser plummet
on or off.
Varies the intensity of the
laser dot.
Graphical and
numerical display of the
longitudinal and transverse tilt of the
instrument’s vertical axis.
The current settings of the laser
plummet are indicated numerically as
a percentage.
Levelling-up with the electronic bubble
Using the footscrews, the instrument
can be levelled-up without having to
turn it through 90° (100 gon) or 180°
(200 gon).
In the display which is closest to the
bull's-eye bubble, the movement of
the small circle runs parallel to the
movement of the bubble in the
alidade. The other display shows the
movement in the opposite direction. When the bubble is centred, the
TPS1100 has been perfectly levelled
up.

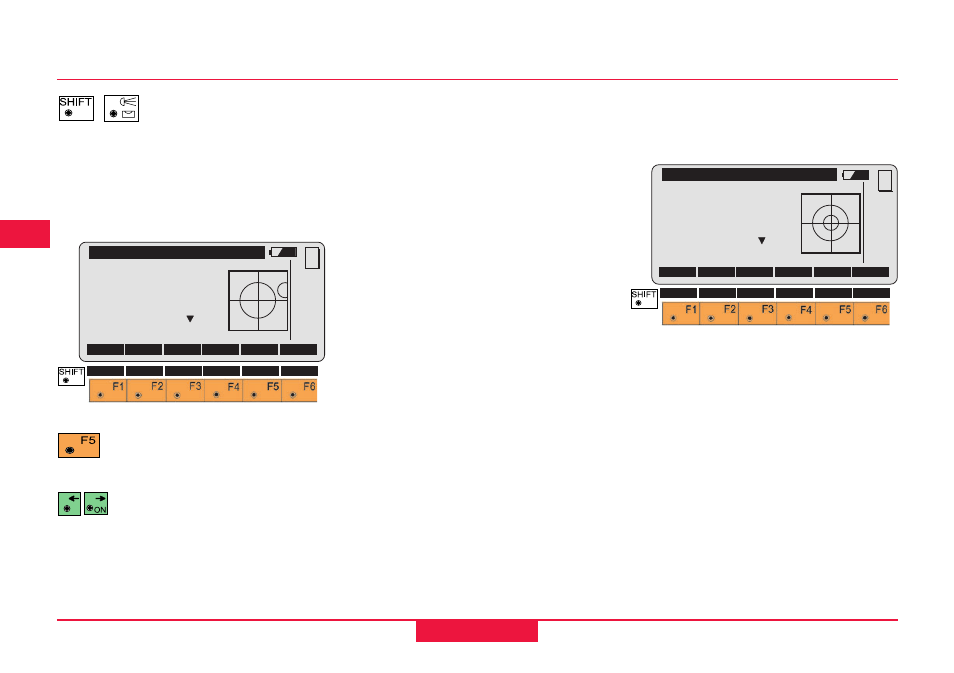

Elect. Level
Tilt L : -0°03'40"
Tilt T : -0°18'30"
L.Plumet : 50% X
CONT L.Pl+
MC
QUIT
Elect. Level
Tilt L : -0°00'10"
Tilt T : -0°00'20"
L.Plumet : 50% X
CONT L.Pl+
MC
QUIT
