Activates the function "REC-Mask
Definition".
Five REC masks can be defined for
recording measurement data, and
one REC mask for setting the station
data.
The first line (point number) cannot
be changed. For the remaining 11
lines, the data to be recorded can be
selected from a list.
Setting the recording mask (RMask)
Sets the current REC mask
to "Standard", i.e. to the REC
masks originally defined.
In contrast to the display mask, the
parameters in the recording template
can be set only once.

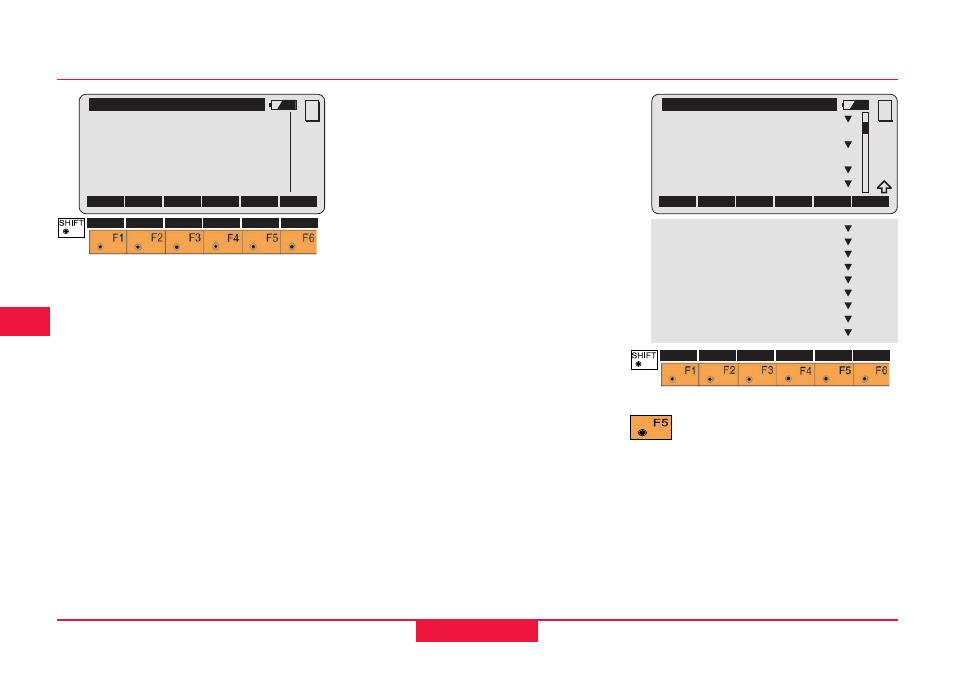

\ REC-Mask Definition
Define : Rec-Mask 1
Mask name : Polar
REC format : GSI16(16 char)
1st word : Point Id (11)
2nd word : Hz (21)
3rd word : V (22)
CONT DEFLT
MC
QUIT
4th word : Slope Dist.(31)
5th word : East
6th word : North
7th word : Elev. (83)
8th word :ppm tot/mm (51)
9th word : (empty)
10th word : (empty)
11th word : (empty)
12th word : (empty)
Display of the type of card (SRAM or
ATA-Flash).
Display of the total memory capacity
and the available memory.
Display of the write-protection
function:
NOT PROTECTED or PROTECTED.
Display of the battery status (only for
SRAM cards):
GOOD or LOW. (If LOW appears, fit
a new internal battery for the PC-card
immediately).
Inspecting the PC-card (PROOF)
\ Check PC-Card
Card type : ATA-Flash
Card name : TPS-1100
Total : 523776 Byte
Free : 509952 Byte
Status : Not protected
Card.Batt : Good
CONT
MC
