KSN 765/770 Integrated Communication Navigation Display

D200802000009

REV 2 Jun 2014

5-9

KSN 770 Radio

Honeywell International Inc. Do not copy without express permission of Honeywell.

The EMERGENCY channel has a stored frequency of 121.500, which

cannot be edited.

NOTE: When the EMERGENCY channel is highlighted, the

EDIT

and

DEL

bezel softkey labels are not displayed.

When a stored frequency is highlighted (not including the

EMERGENCY frequency), the

EDIT

and

DEL

bezel softkey labels

are displayed. The stored frequency can be edited by pushing the

EDIT

bezel softkey. Pushing the

EDIT

bezel softkey activates edit

mode and displays the

EDIT

and

CNCL

bezel softkey labels, as

shown in Figure 5--11. The highlighted stored frequency can be edited

using the joystick knob.

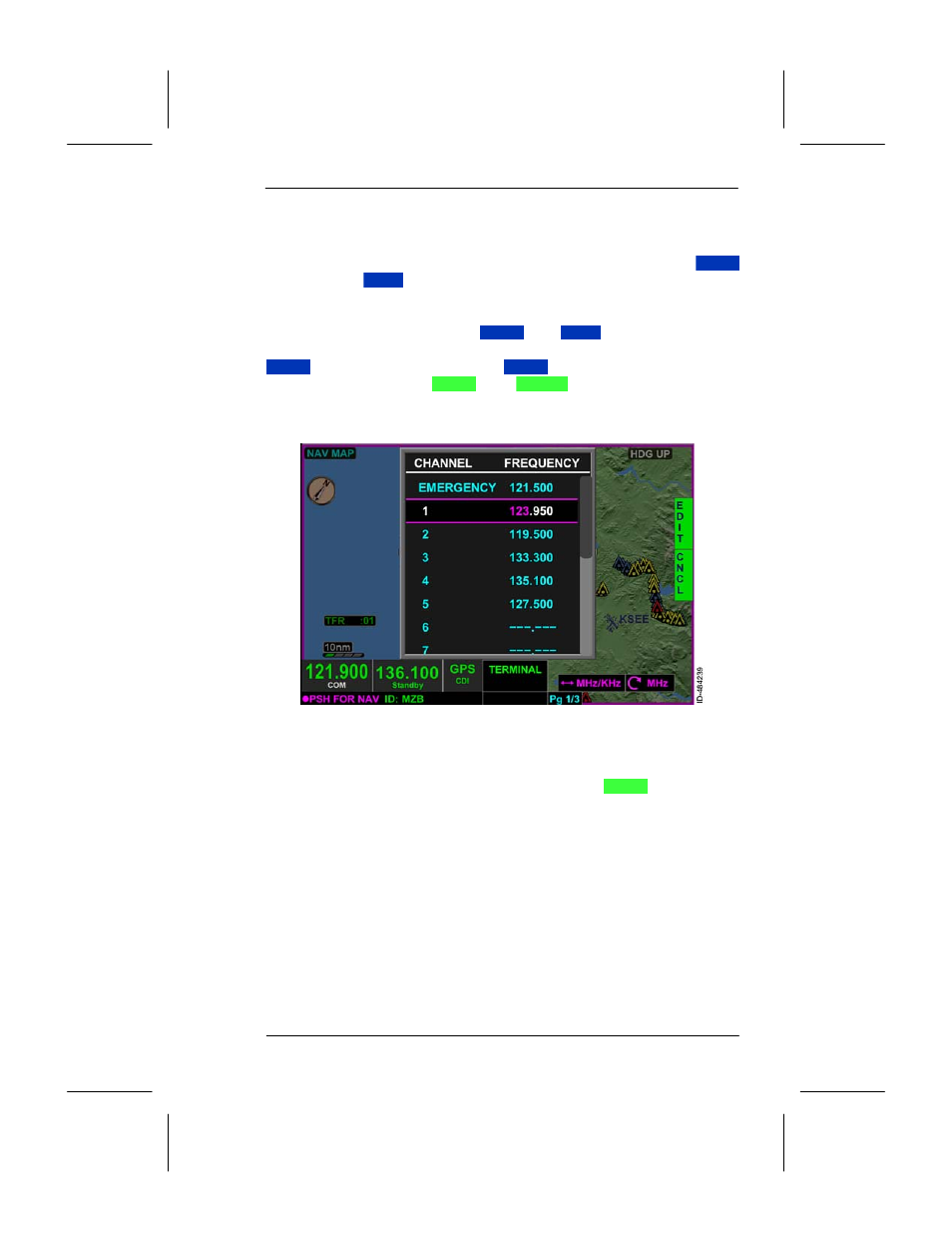

Figure 5--11

Edit Frequency

When the frequency is set as desired, pushing the

EDIT

bezel softkey

commits the frequency to memory and exits the edit mode.
