Edit Mode Operation

When edit mode is active, the

editable value

is displayed in magenta

and the magenta

EDIT

annunciator is displayed in the lower--right

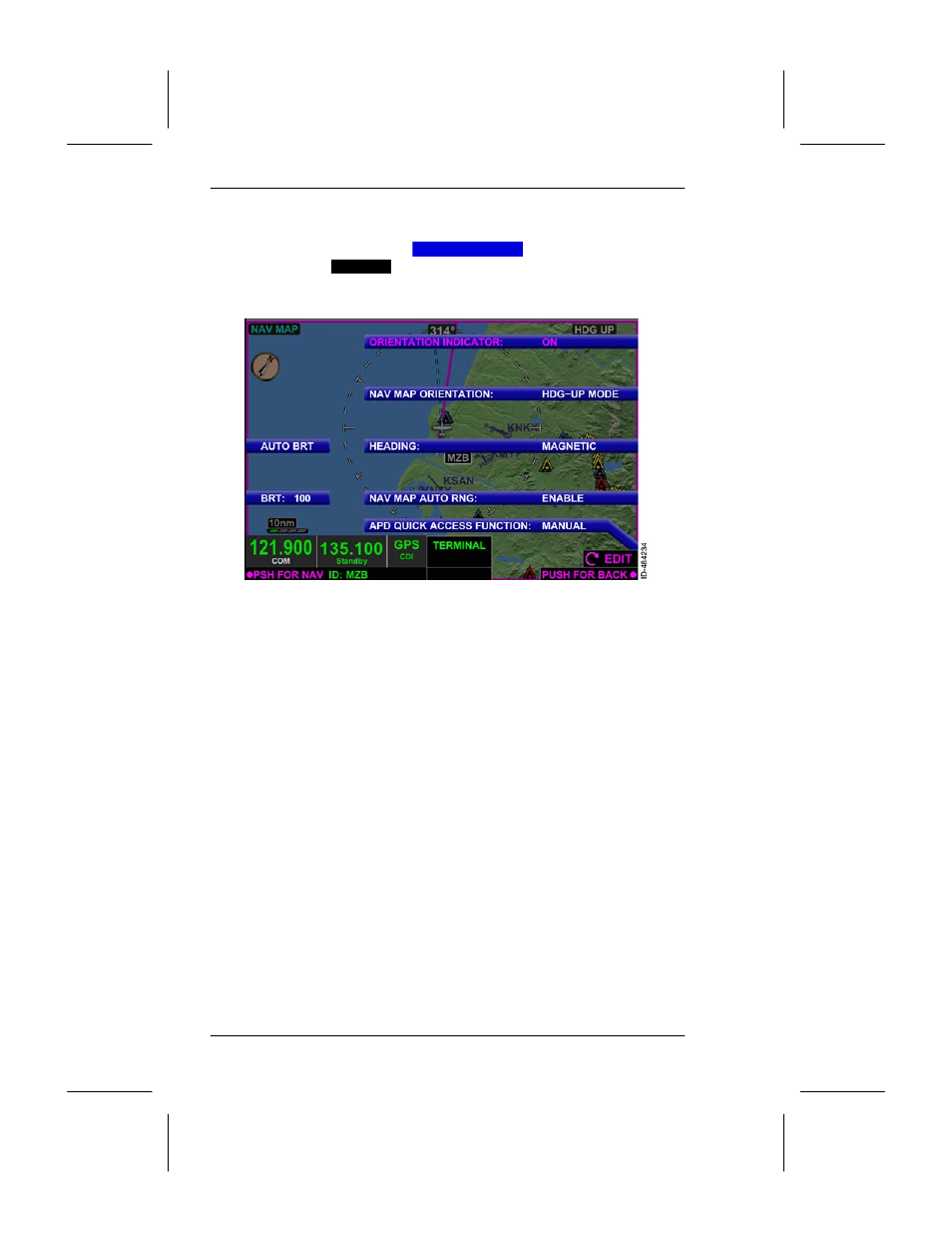

corner, as shown in Figure 4--5.

Figure 4--5

Edit Mode Active

Rotating the joystick knob adjusts the editable value. Continued rotation

of the joystick knob wraps through the available editable menu options.

Pushing the bezel softkey adjacent to the editable value or pushing in

the joystick knob disables the field from editing and exits the edit mode.

Pushing the bezel softkey adjacent to a different editable field enables

that field for editing and disables the previously selected field for editing.

Menu Controls

When the MENU bezel key is pushed, six menu pages are viewable that

permit control of various functions and display information that can be

useful to the pilot.
