KSN 765/770 Integrated Communication Navigation Display
D200802000009
REV 2 Jun 2014 10-9
Datalink Weather View
Honeywell International Inc. Do not copy without express permission of Honeywell.
When the touchscreen is inactive, the weather product page titles are
flat and not selectable. When the touchscreen is active, the weather
product page title (shown in Figure 10--2 as METARS ) and view title
(shown in Figure 10--2 as WEATHER ) become embossed and
selectable. When the touchscreen is active and either of the embossed
touchscreen buttons are selected, the weather view page list is
displayed, as shown in Figure 10--2. The weather pages can be directly
selected by using the touchscreen to select a weather product from the
list.

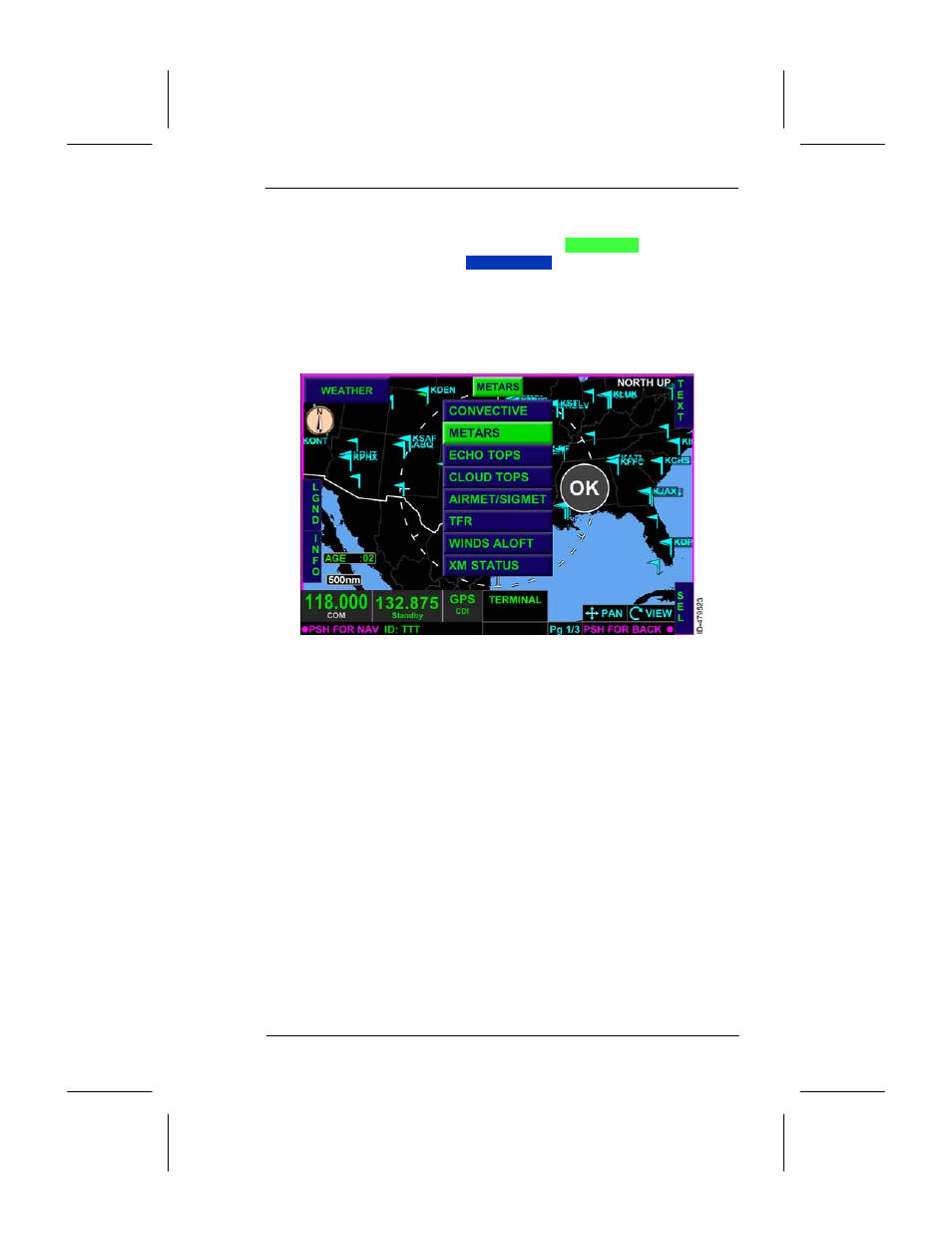

Figure 10--2
Weather View Page List
The currently displayed weather page is displayed with blue text on a
green background in the list. All other pages are displayed with green
text on a blue background. Any of the pages can be displayed by using
the touchscreen to select the desired page title and then pushing OK
on the touchscreen. The weather view page list is removed after
5 seconds of inactivity.
NOTE: The page selection is retained following a power cycle of the
unit.
