KSN 765/770 Integrated Communication Navigation Display
D200802000009
REV 2 Jun 2014
Datalink Weather View
10-10
Honeywell International Inc. Do not copy without express permission of Honeywell.
Convective Page
The convective page, shown in Figure 10--3, can display the following
radar coverages:
D
US and Puerto Rico NEXRAD
D
US precipitation type
D
Convective SIGMETs
D
Datalink lightning
D
Canada radar
D
US NEXRAD coverage
D
Canada coverage.

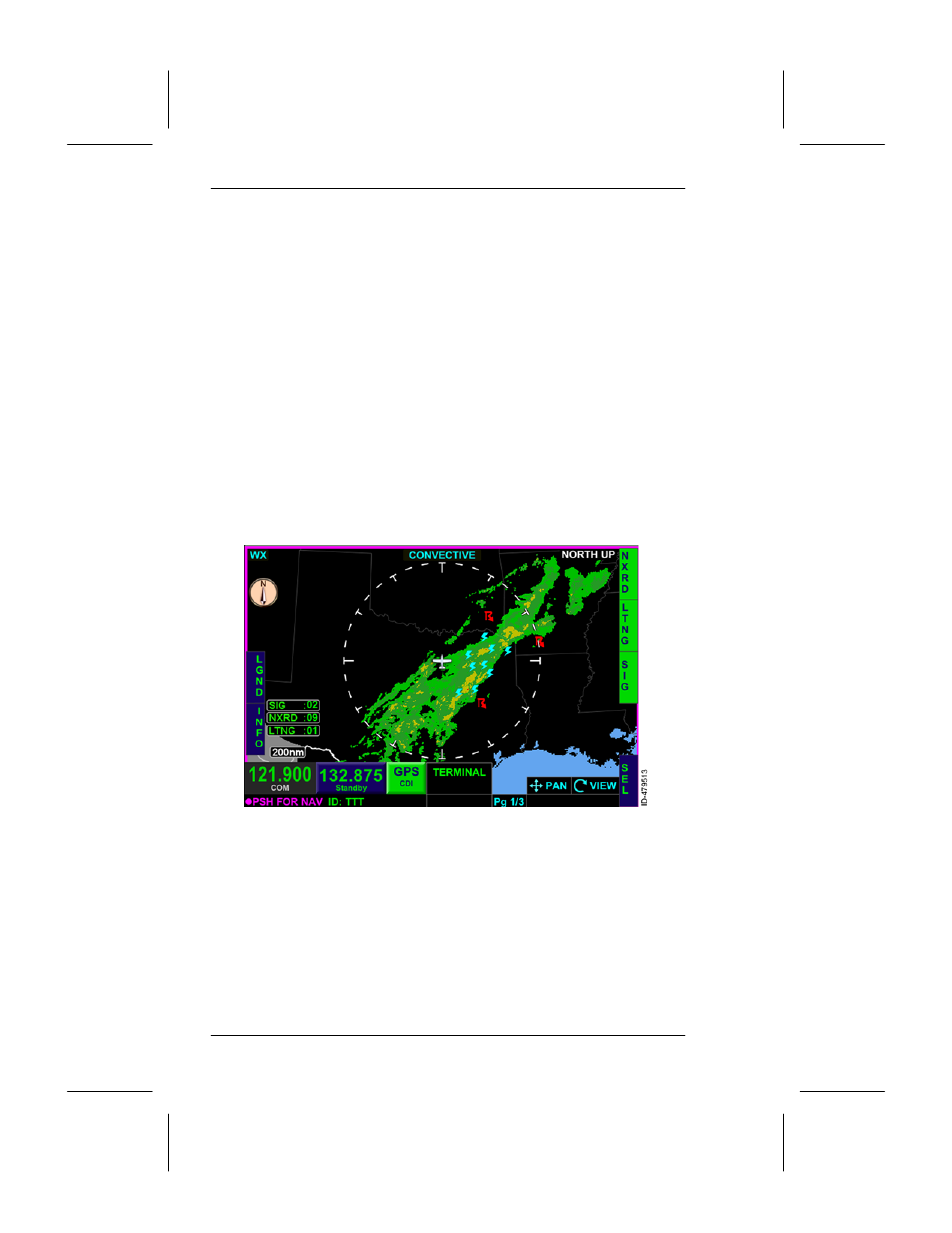

Figure 10--3
Convective Page
NEXRAD (next--generation radar) detects precipitation and
atmospheric movement. NEXRAD is a network of 159 high--resolution
Doppler radars operated by the National Weather Service (NWS), an
agency of the National Oceanic and Atmospheric Administration
(NOAA), to detect meteorological data for the United States. The data
can be processed and displayed in a mosaic map showing patterns of
precipitation and movement. Each NEXRAD radar site has a maximum
range of 250 NM.
