KSN 765/770 Integrated Communication Navigation Display

D200802000009

REV 2 Jun 2014

Flight Management System (FMS)

15-48

Honeywell International Inc. Do not copy without express permission of Honeywell.

Procedure Turns

Procedure turns are associated

with approach procedures. The

turns are used for course

reversals to align the aircraft with

the runway. When an approach

procedure contains a procedure

turn, the FMS displays the

procedure turn as a canted

teardrop

symbol

the

navigation map display and

displays PT next to the procedure

turn waypoint in the waypoint list.

For this example, the ILS

approach to runway 8 at KABQ is

entered as the approach procedure with the Albuquerque (ABQ) VOR

transition. The approach procedure contains a procedure turn at the

ABQ VOR. As a result, PT is displayed next to the ABQ waypoint in the

flight plan list, indicating the procedure turn at ABQ. The procedure turn

is also displayed on the navigation map as a canted teardrop symbol,

as shown in Figure 15--43.

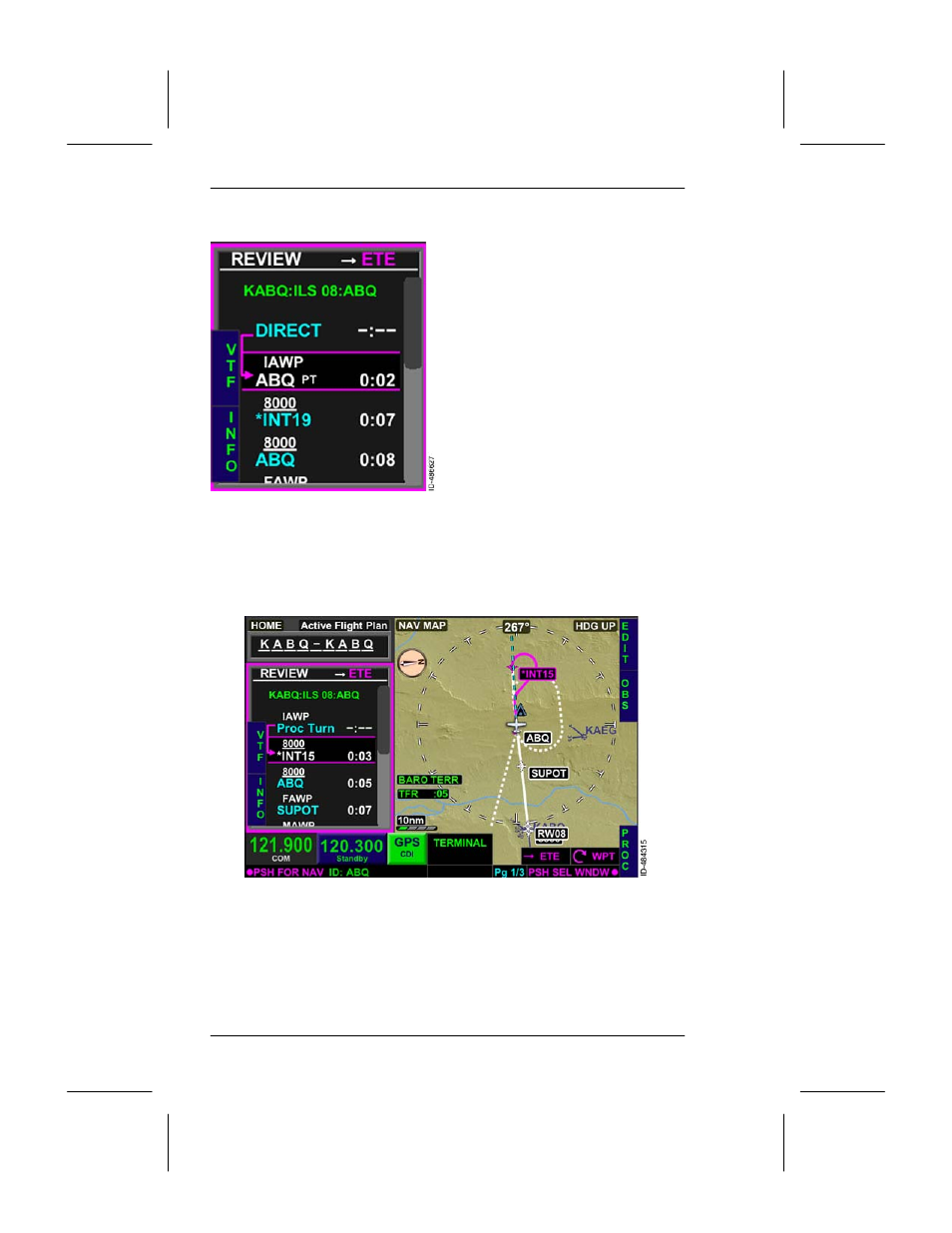

Figure 15--43

Procedure Turns
