KSN 765/770 Integrated Communication Navigation Display
D200802000009
REV 2 Jun 2014
Navigation Map View
6-30
Honeywell International Inc. Do not copy without express permission of Honeywell.
NAV MAP OVERLAY BEZEL SOFTKEY LABELS
The pilot has the ability to select the following map overlays using bezel
softkeys:
D
Airways
D
Terrain
D
Lightning
D
Datalink weather
D
Traffic.
Each of the overlays is selected for display using the bezel softkeys and
the bezel softkey labels displayed on the right side of the display.
Airways Overlay
When an airway overlay is selected, the airway legs identifiers for each
airway are displayed, as shown in Figure 6--13.

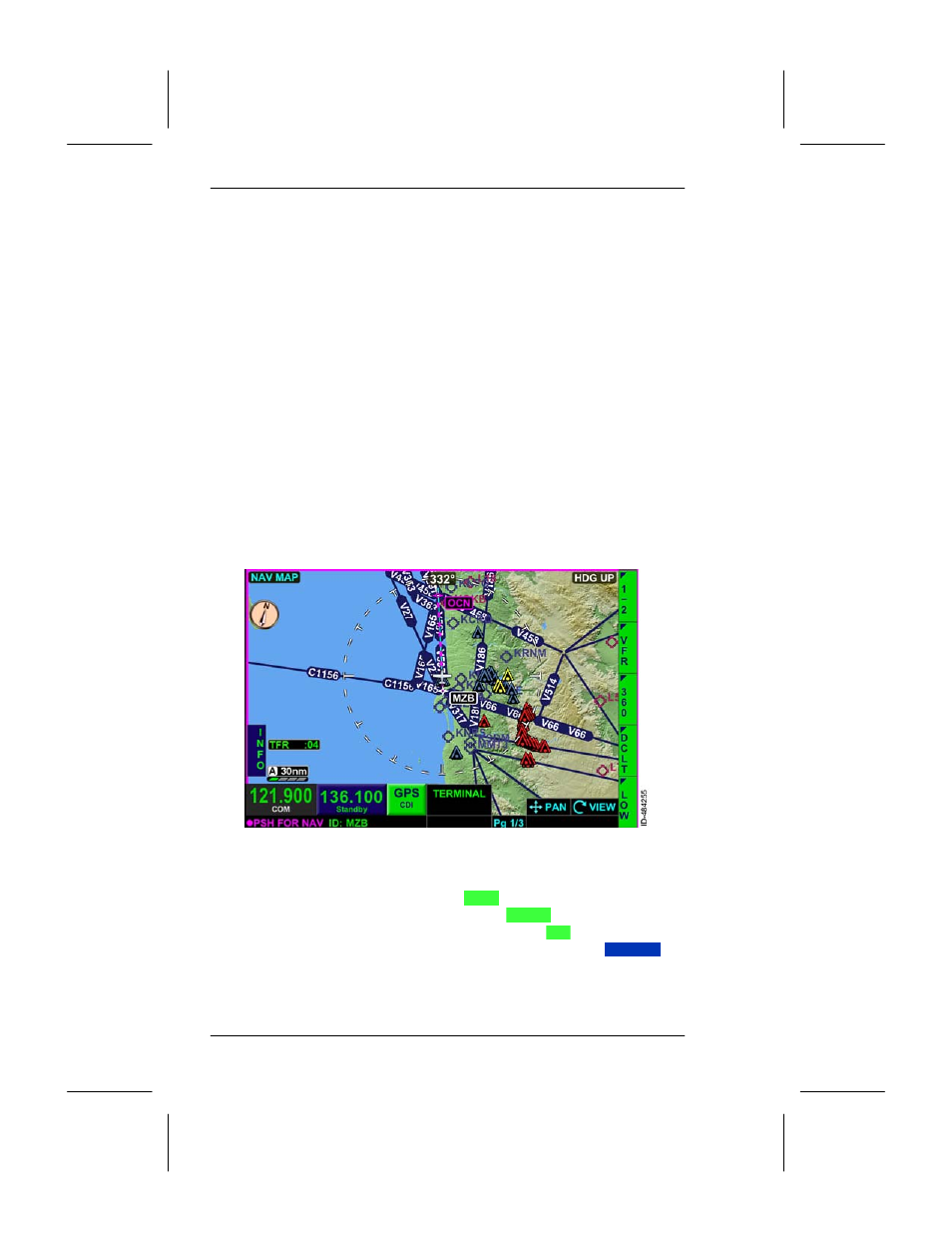

Figure 6--13
LOW Airways
Pushing the bezel softkey on page 1--2 in 5R toggles through the
various airway overlay settings. When LOW is displayed, the
published low--level airways are displayed. When HI is displayed, the
published high--level airways are displayed. When ARWY is
displayed, neither the low or high level airways are displayed.
NOTE: The airway overlay setting is retained following a power cycle
of the unit.
