Datalink Weather View
10-36
Honeywell International Inc. Do not copy without express permission of Honeywell.
WIND ARROWS
The wind arrows are depicted with short or long barbs, as shown in
Figure 10--28. The short barb indicates winds at 5 knots. The long barbs
indicate that the winds are at 10 knots. A pennant indicates the winds
are at 50 knots. The barbs and pennants are oriented downwind. The
winds aloft legend is displayed when the LGND bezel softkey label is
active.

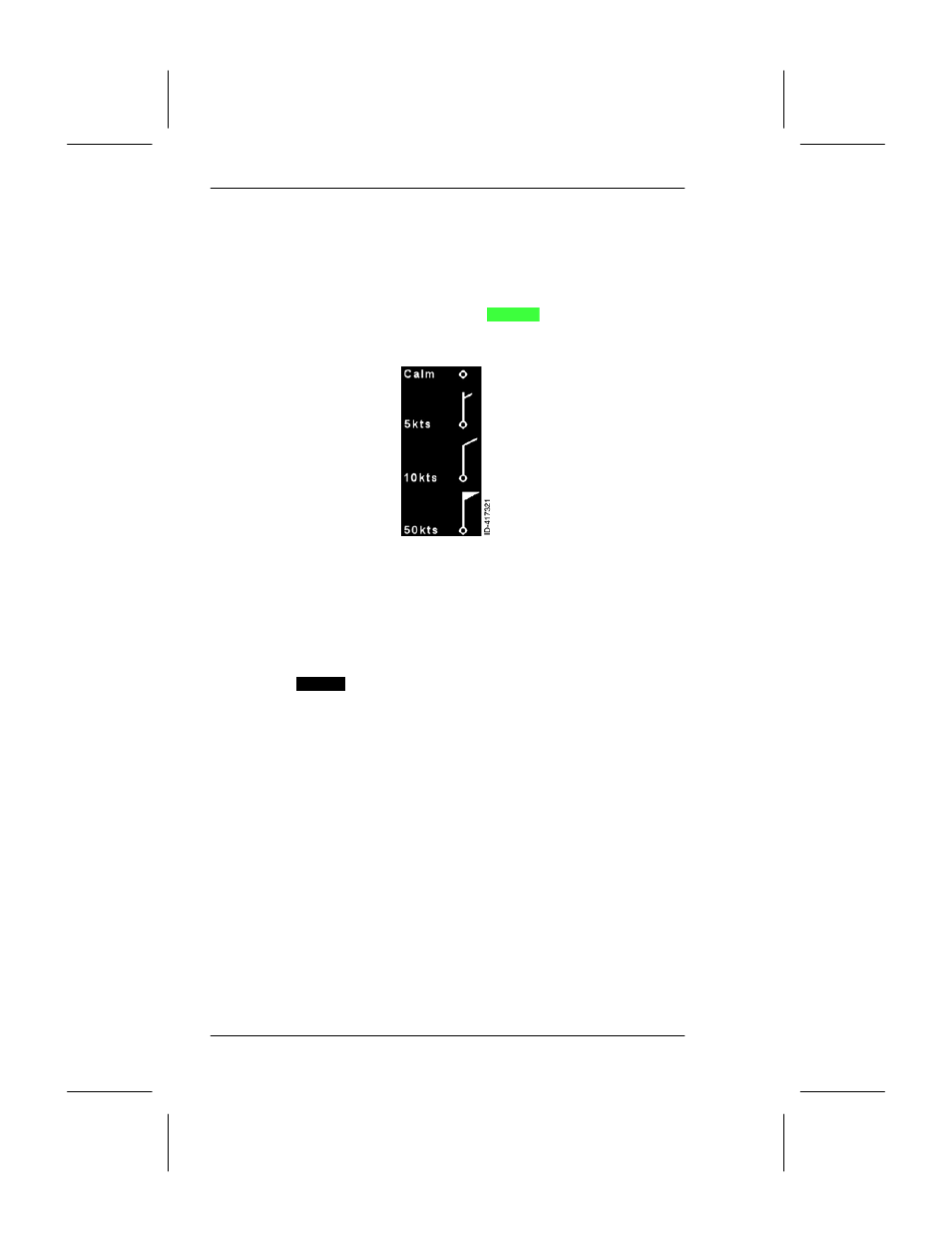

Figure 10--28
Winds Aloft Legend
NOTE: The wind arrow supports up to 3 pennants and 4 long barbs
for a maximum representation of 190 knots.
When the wind speed is less than 5 knots, the wind arrow is replaced
with a white circle which indicates calm winds.
