KSN 765/770 Integrated Communication Navigation Display

D200802000009

REV 2 Jun 2014

5-7

KSN 770 Radio

Honeywell International Inc. Do not copy without express permission of Honeywell.

The KSN 770 will automatically switch the

CDI

selected NAV source

from GPS to VLOC when all of the following conditions are met:

The FAWP has not been sequenced

An ILS/LOC approach procedure is active in the flight plan

Track is within 35 degrees of the inbound track as defined from the

FAWP to the MAWP

Track is within 10 degrees of the desired track.

Touchscreen Tuning

Pushing the on--screen standby COM frequency displays the radio

tuning pop--up window shown in Figure 5--9.

NOTE: Pushing the on--screen standby NAV frequency displays the

same pop--up window without the

bezel softkey label

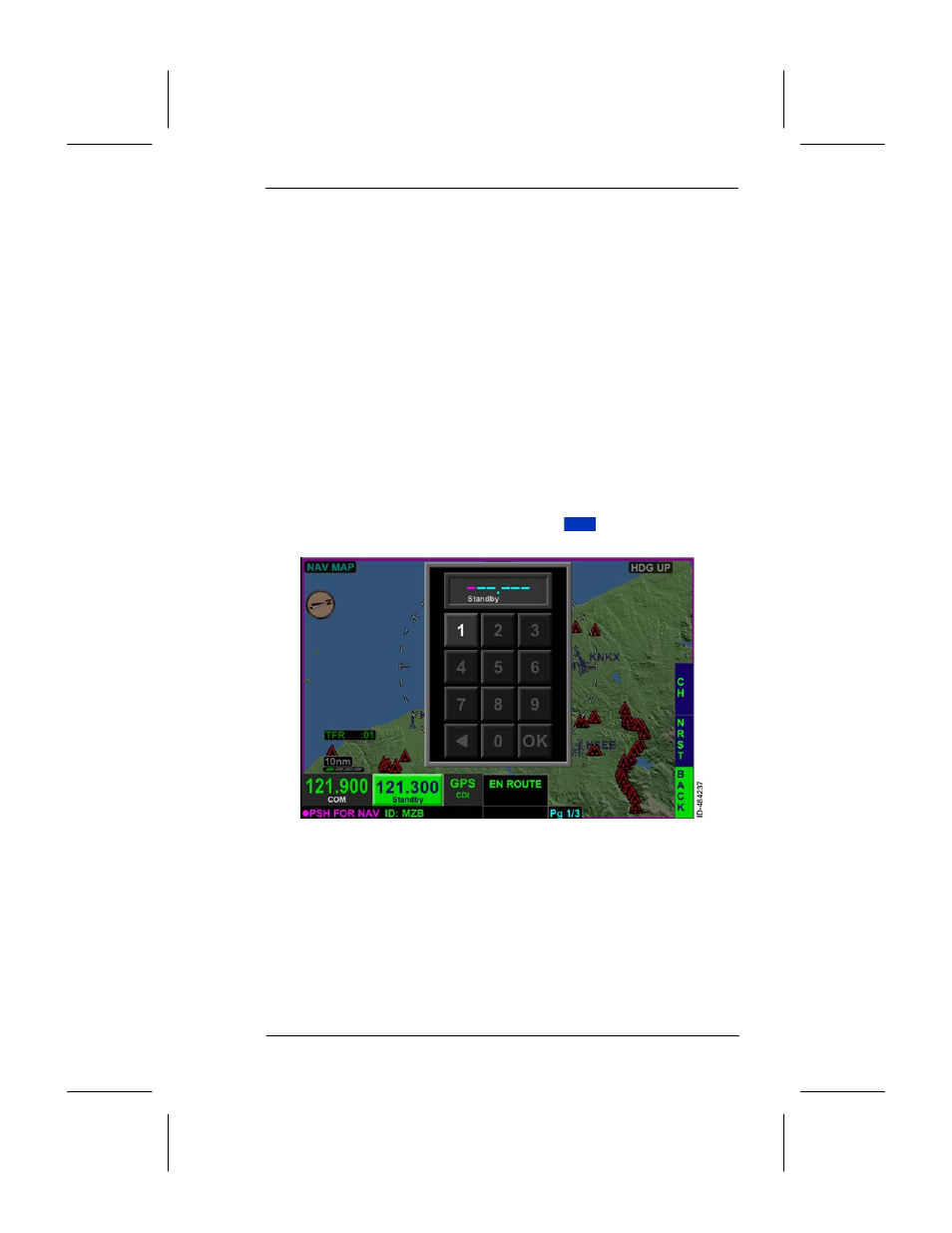

Figure 5--9

Radio Frequency Tuning Pop--Up Window

The radio frequency is entered by pushing the touchscreen numbers on

the radio frequency pop--up window. As the frequency is selected, the

remaining valid frequency values remain available for selection. The

remaining invalid frequency values are grayed--out and not available for

selection.

Pushing the left arrow touchscreen softkey deletes the last selected

frequency value without removing the radio tuning pop--up window.
