Commissioning
Operating Manual PNOZ s50
1002194­EN­02 42

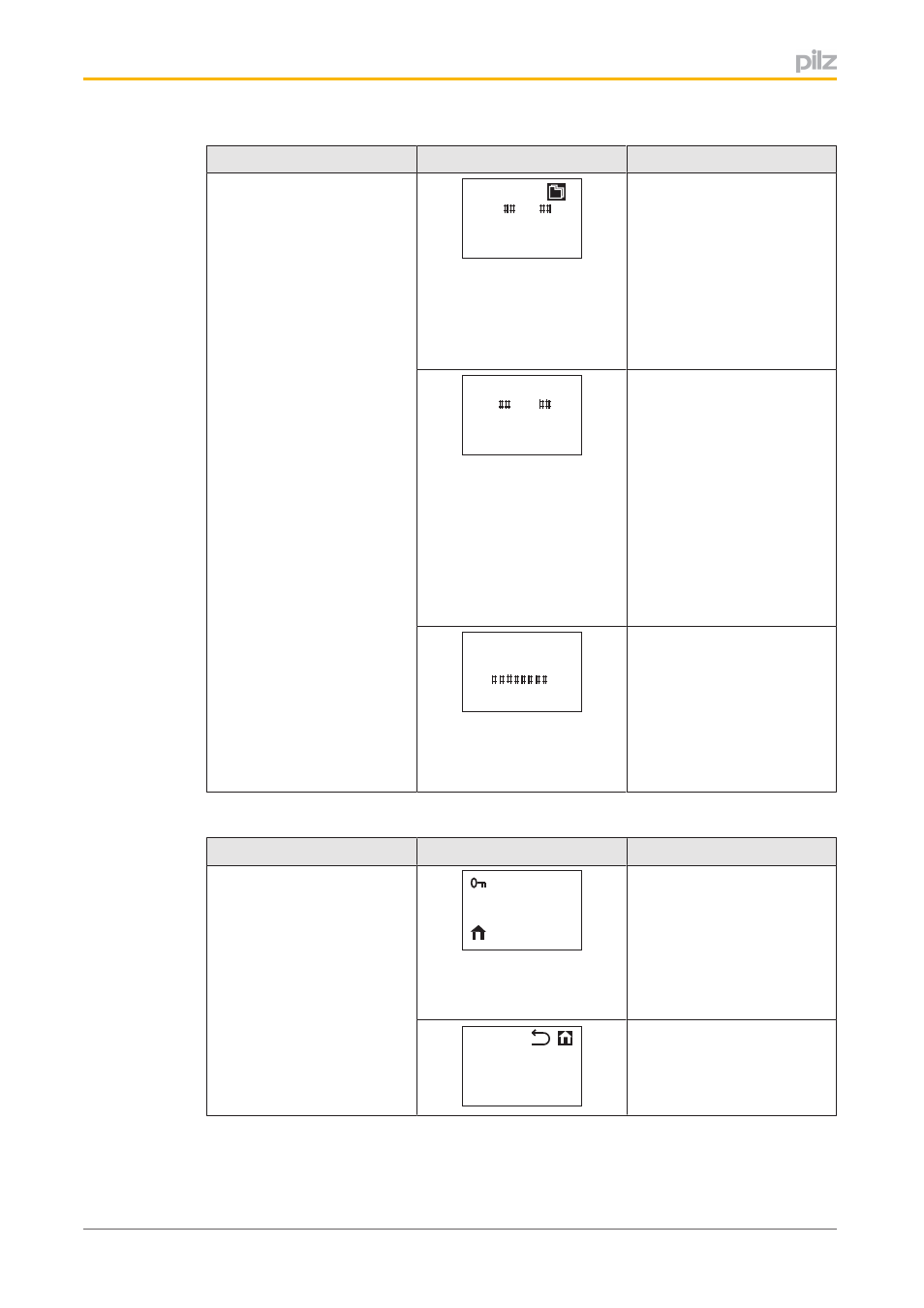

Overview Display Description
Error Stack
Error messages are dis­
played
Error Stack
Cat. No.
dddD hh:mm:ss
Current error stack entry
Cat. – Error class (hexa­
decimal)
No. – Error number (hexa­
decimal)
­ Error text
dddD hh:mm:ss ­ Power­on
time since Power On: Days,
hours, minutes, seconds
Error
Cat. No.
dddD hh:mm:ss
Error stack entries
­ Entry number/
number of entries (decimal)
Cat. – Error class (hexa­
decimal)
No. – Error number (hexa­
decimal)
­ Error text
dddD hh:mm:ss ­ Power­on
time since error occurred:
Days, hours, minutes,
seconds
Parameter
0x
MSB LSB
Parameters of a selected
entry in the error stack
­ Current para­
meter/number of available
paramters (decimal)
0x######## ­ Parameters
(hexadecimal), grouped by
MSB and LSB
Level 2: Password entry
Overview Display format Description
PIN
Password entry
Edit Config
Enter PIN
- - - - - -
Proceed
_ _ _ _ _ _ ­ Field for enter­
ing the password
Proceed – Confirm entry
and jump to Level 3
Home – To start menu,
without confirming entry
Access Denied
Wrong PIN
You entered an incorrect
password. Back – Back to
password entry
Home – Back to start menu
Level 3: Configuration
The device is supplied with the following parameters:
