Commissioning
Operating Manual PNOZ s50
1002194­EN­02 38

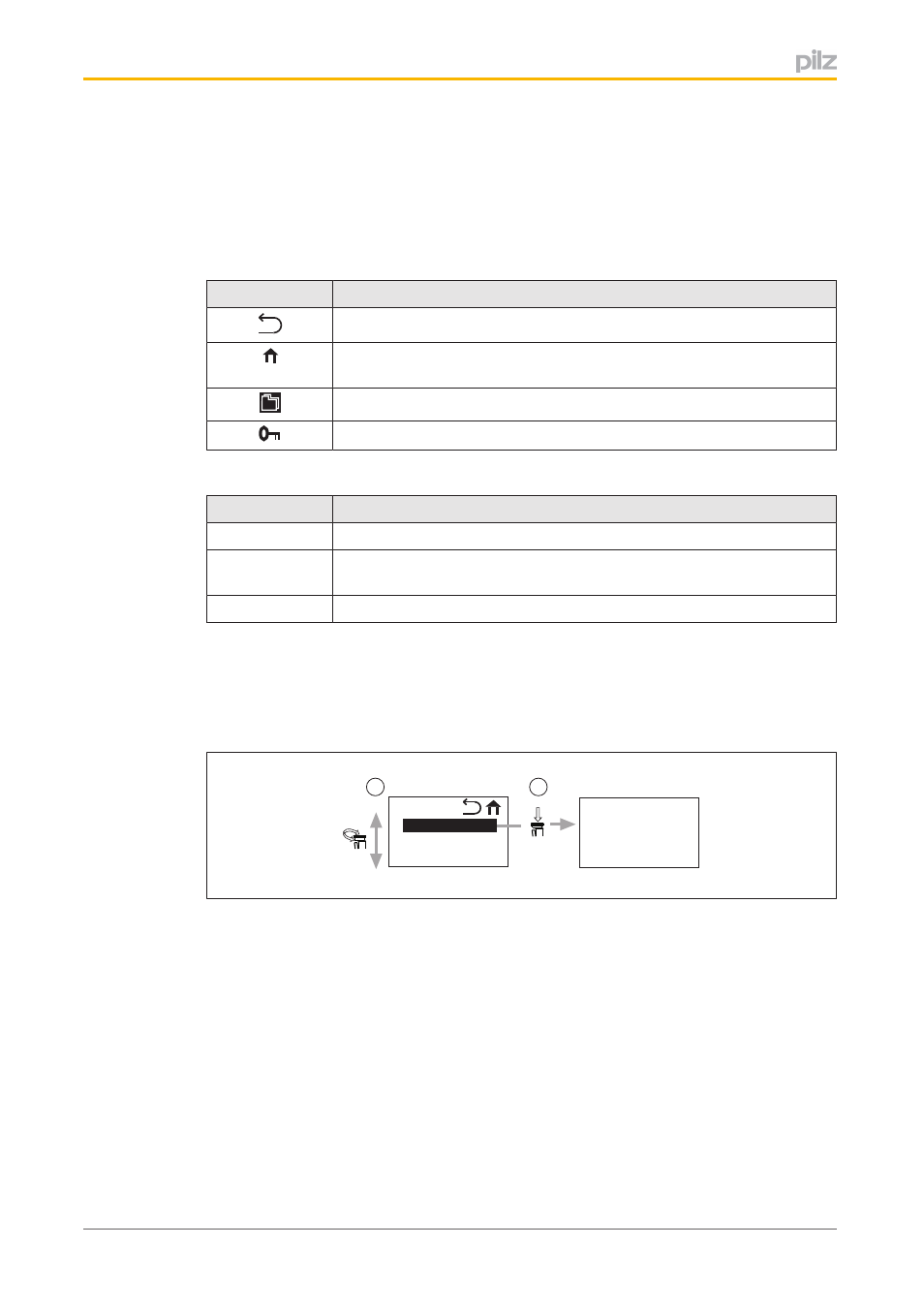

6.2.5.2 Operate menus and enter values
Various navigational aids are available on the display:
} Icons
} Text fields
Icons
Icon Description
Returns to the previous menu
Exits the configuration menu (Level 3) and switches to the home menu
(Level 1)
Switches from the current error in the error stack
Switches to the password menu (Level 2)
Text fields
Text field Description
Cancel or No Rejects all the changes and returns to the previous menu
Proceed Confirms the password entry and jumps to the configuration menu
(Level 3)
Store or Yes Saves all the changes and returns to the previous menu
To move within a menu and switch to another menu, proceed as follows:
1. Turn the rotary knob to jump from line to line.
The position within the menu is highlighted.
2. Press the rotary knob to move to the next menu or to the previous menu.
1 2
Counter
Counter 1
Counter 2
Counter 1
########
Set: ########
Cancel Store
Fig.: Moving from line to line
To change values in a menu, follow the instructions below:
1. Turn the rotary knob to jump from line to line.
2. Press the rotary knob. Only then is it possible to change a numeric value.
The selected area flashes. Values can now be changed.
3. Turn the rotary knob to switch between numeric values.
4. Press the rotary knob to complete the entry.
