5 Installation
5.1 General installation guidelines
Control cabinet installation
} The unit should be installed in a control cabinet with a protection type of at least IP54.
} Fit the device to a horizontal DIN rail. The venting slots must face upwards and down­
wards. Other mounting positions could destroy the device.
} Use the locking element on the rear of the device to attach it to the DIN rail.
} Push the device upwards or downwards before lifting it from the DIN rail.
CAUTION!
Damage due to electrostatic discharge!
Electrostatic discharge can damage components. Ensure against discharge
before touching the product, e.g. by touching an earthed, conductive sur­
face or by wearing an earthed armband.

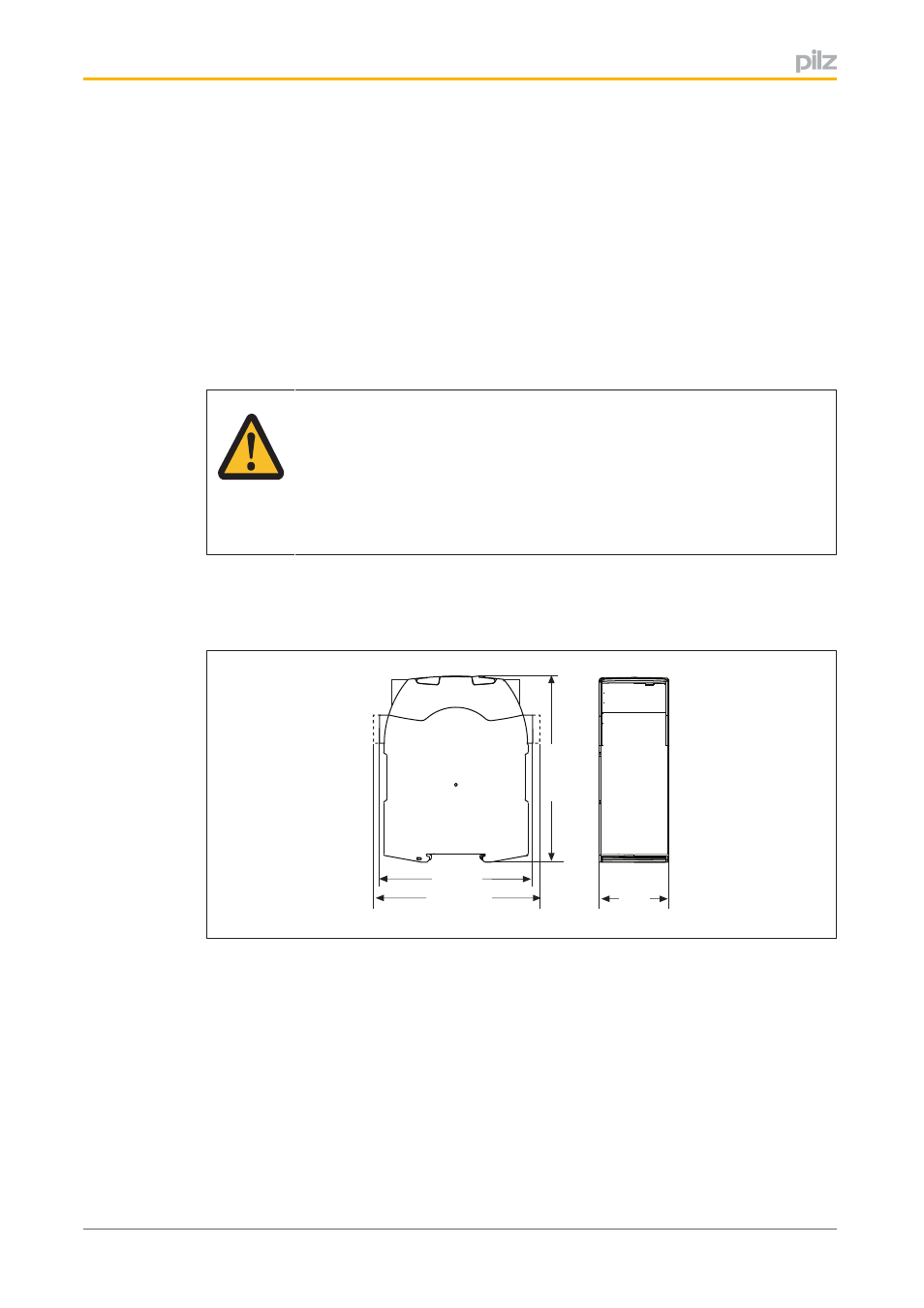

5.1.1 Dimensions
*with spring­loaded terminals
120 (4.72")
* 100 (3,94")
98 (3.86")
45
(1.77")
