Commissioning
Operating Manual PNOZ s50
1002194­EN­02 31

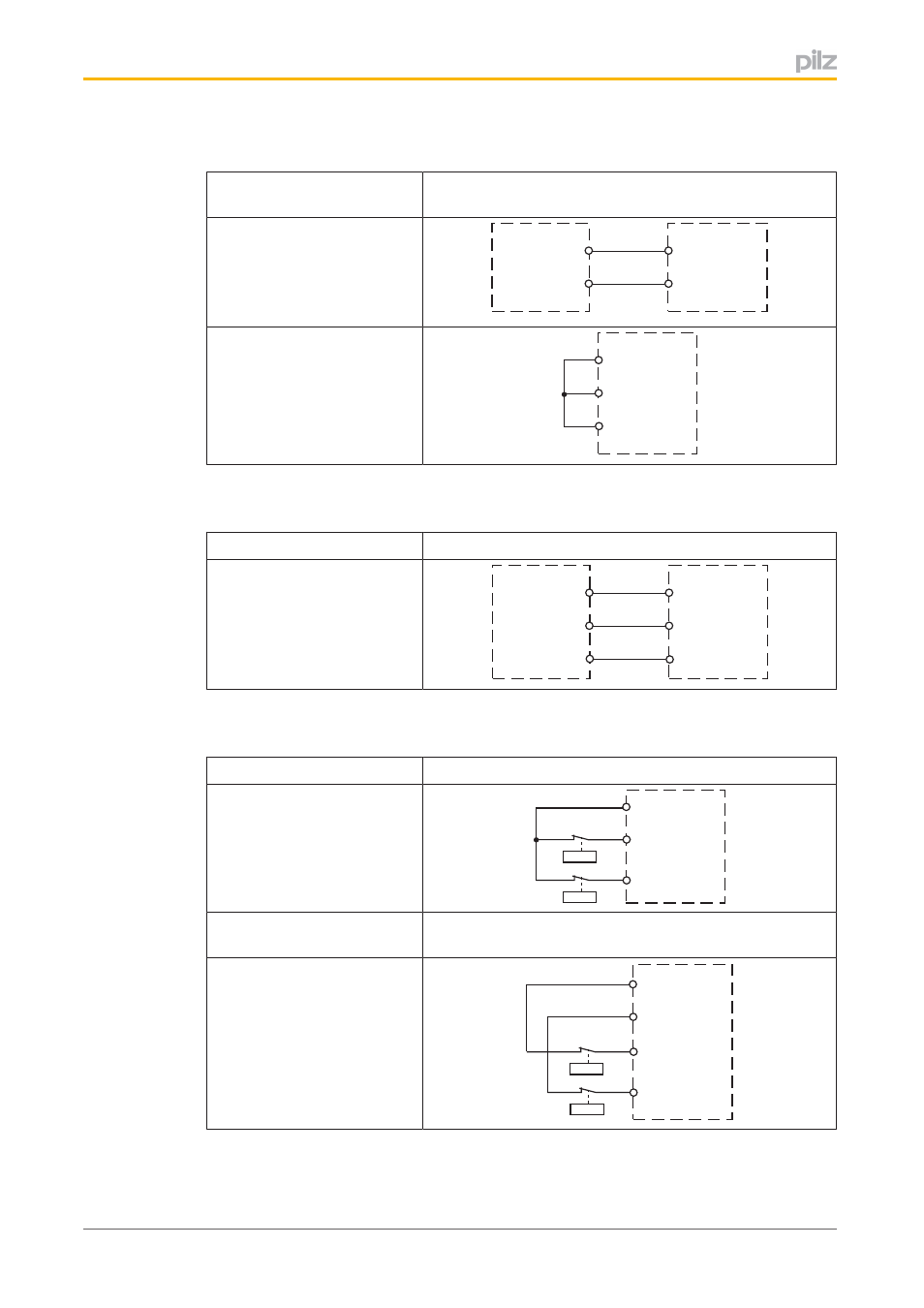

6.1.6.2 Slow shutdown
Activation via single­pole out­
puts
PLC: Safety control system
S35
S36
O3
O4
PLC PNOZ s50
Connect the inputs to 24 VDC
if slow shutdown is not being
used.
S11: Voltage output 24 VDC
S35
S36
S11 24 V DC
6.1.7 Outputs
Status outputs
PLC: Safety control system
I1
I2
O3
O4
PLC PNOZ s50
I3 O5
6.1.8 Feedback loop
Feedback loop
A N/C contact is shown in the
connection diagram. A N/O
contact can also be con­
figured.
S11 24 V DC
Y1
Y2
Feedback loop with test
pulses
Please note the allocation of
the test pulses and feedback
loops:
T0 <­> Y1
T1 <­> Y2
Y1
Y2
T0
T1
