Level 3: Configuration
The device is configured in Level 3.
Level 3
Level 2
Config 1/3
Load
Store
Reset
Config 2/3
Input
Feedback
Output
Config 3/3
Counter
Change PIN
Reboot
Load Config
from Card
Are you sure?
No Yes
Reset Config
to Default
Are you sure?
No Yes
Input
B1/B2
Store Config
to Card
Are you Sure?
No Yes
Feedback
Pulsing
Y1
Y2
Output
O1
O2
Counter
Counter 1
Counter 2
PIN
Old _ _ _ _ _ _
New _ _ _ _ _ _
Cancel Store
Adopt changes
and Reboot
Are you sure?
No Yes
Input Voltage
B1/B2
0 24 V
Cancel Store
O1
T _ _ _ _ ms
U _ _ _ _ V
Cancel Store
O2
Counter 1
Set:
Cancel Store
Counter 2
Denied
Wrong PIN
Y1/Y2 Pulse
Pulse
Cancel Store
Y1
Logic
Timing
Y2
Y1 Logic
Logic N/O / N/C
Cancel Store
Y2 Logic
Y1 Timing
Ton
Toff
Y2 Timing
Y1 Ton
Fast / Slow
_ _ _ _ ms
Cancel Store
Y2 Ton
Y1 Toff
Fast _ _ _ _ ms
Slow _ _ _ _ ms
Cancel Store
Y2 Toff
Reboot to
Adopt changes
Are you sure?
No Yes
Home
Level 1

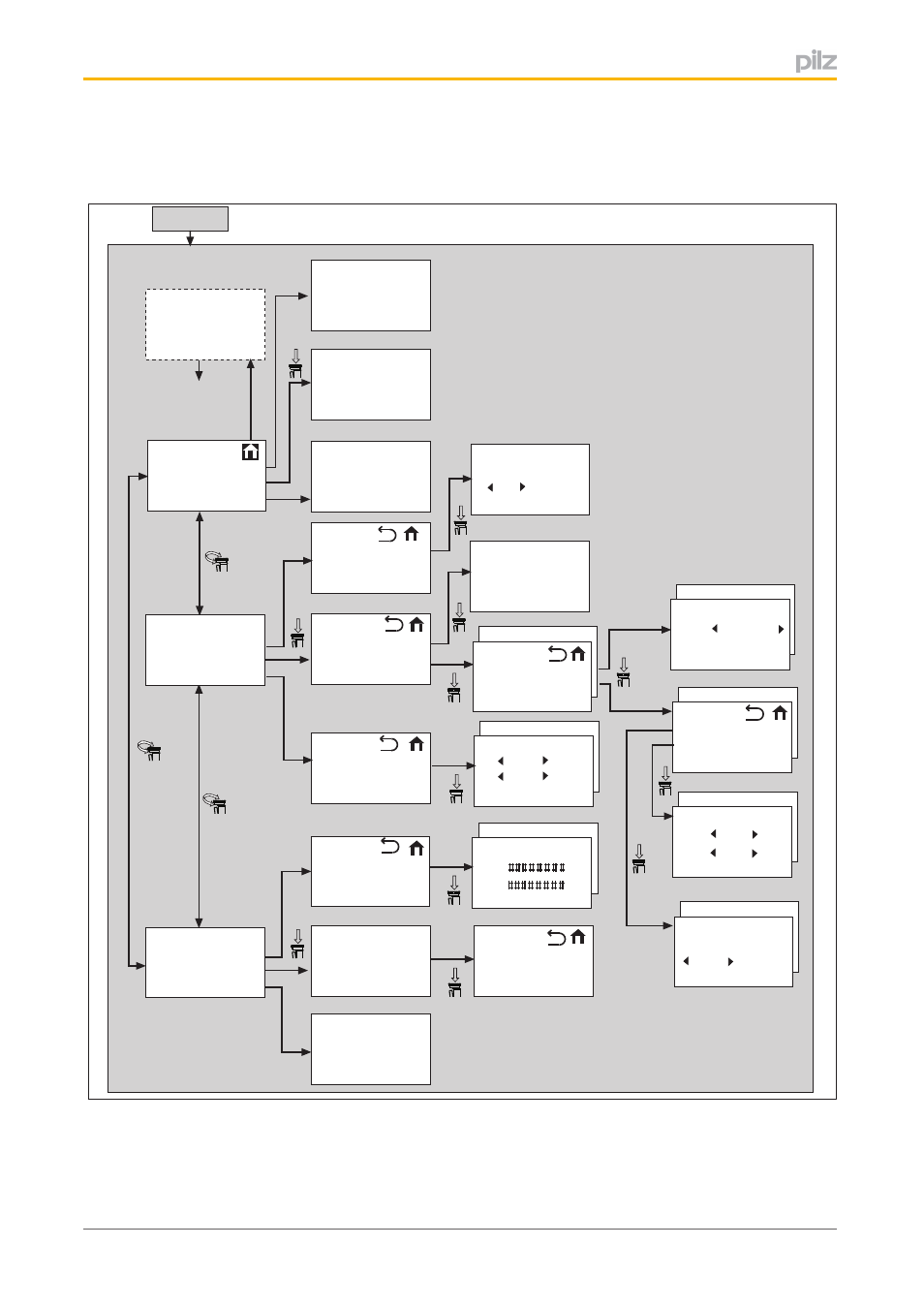

Fig.: Menu overview of Level 3
