Contains the
items associated
with the analog
output functions
of the FM5004.
To select a probe for the analog output system, press the channel select switch
for the desired probe, and then press Out. The Out LED for that channel will
illuminate. More than one channel may be selected at one time.

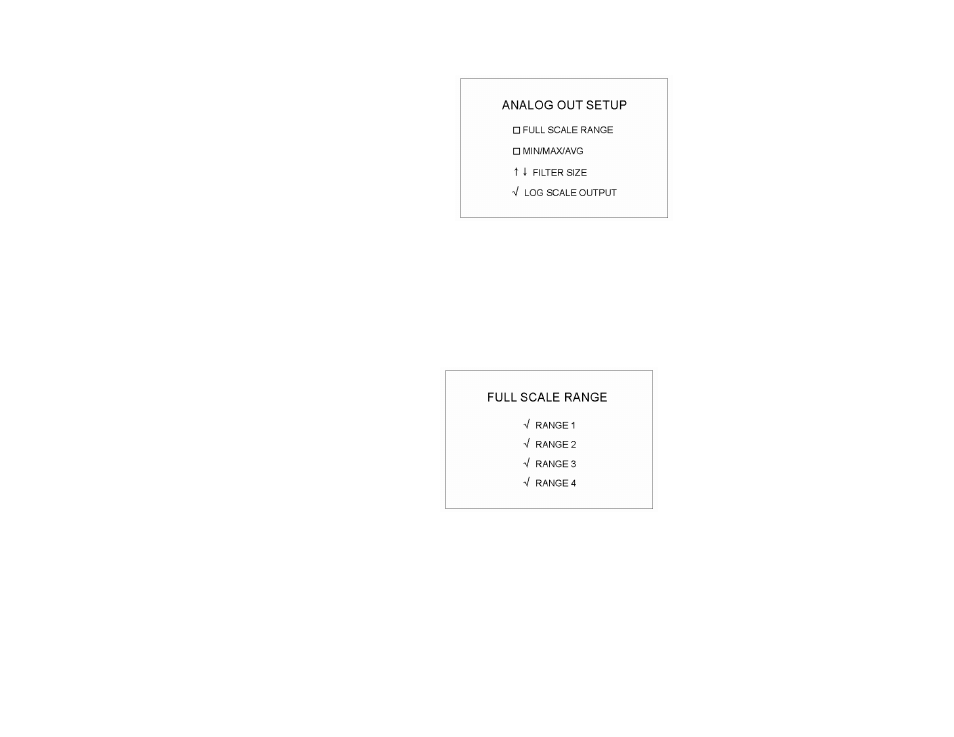

FULL SCALE RANGE
This only applies
to operation in
auto-range
mode.
When operating
in a fixed range,
the analog output
full scale range
will be the upper
limit of the
highest range of
analog output
selected probes.
Contains the allowable full scale range settings for the analog output system. The
field level that corresponds to a full scale output of five volts is the upper limit of
the range selected. A zero field will create an analog output of zero volts.
Menu System | 43
