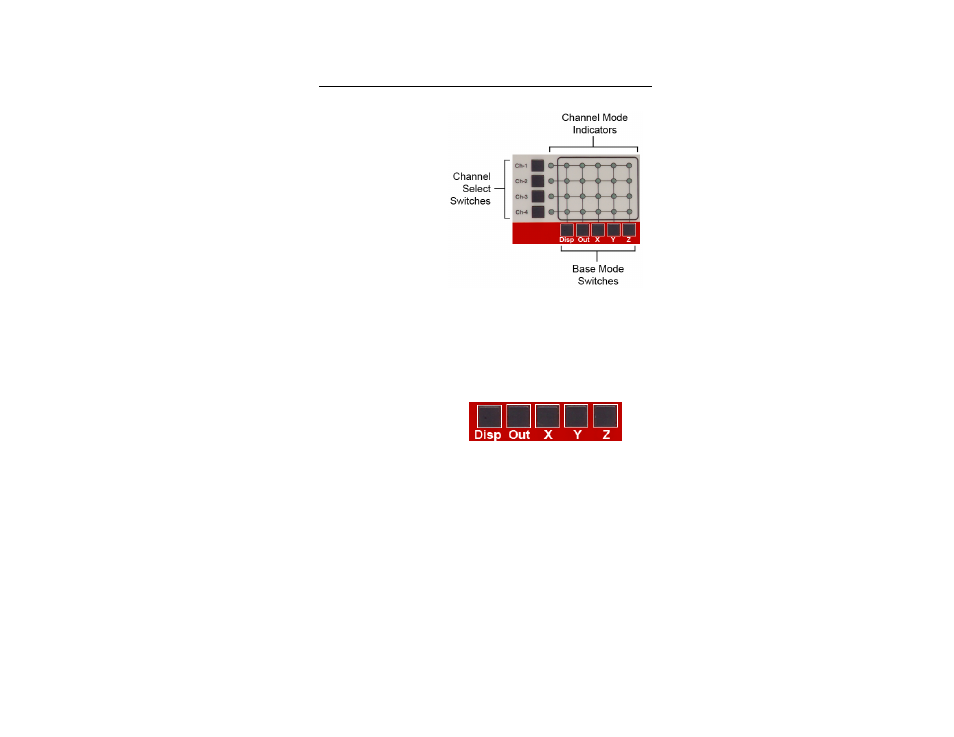

Input Selection Matrix
The Input Selection Matrix
includes Channel Select
Switches, Base Mode
Switches, and Channel Mode
Indicators.
B ASE M ODE S WITCHES
The Base Mode Switches
include Disp, Out, X, Y,
and Z.
These switches are used to
define the FM5004 base
operating mode for the
selected channel.
The base mode switches select a probe axis (or axes) for display and/or analog
output. The input data for the assigned channel may be displayed on the
Channel Mode Indicators and/or may be routed to analog output. The base mode
selections for a given channel remain active until readjusted.
