3.0 Before You Begin
Before connecting any components or placing
into operation, follow the safety information in
the ETS-Lindgren Product Information Bulletin
included with your shipment.
Perform all steps in this section before powering on the FM5004 Field Monitor or
installing it in a test environment.
Verify FM5004 Operation
1. Make sure the probes are fully charged. See the probe manual for
charging information.
2. Remove the protective covers from the fiber optic cable. Inspect the
tips of the cable to verify they are free from dirt and other
contaminants.
Save all protective caps and covers for re-use.

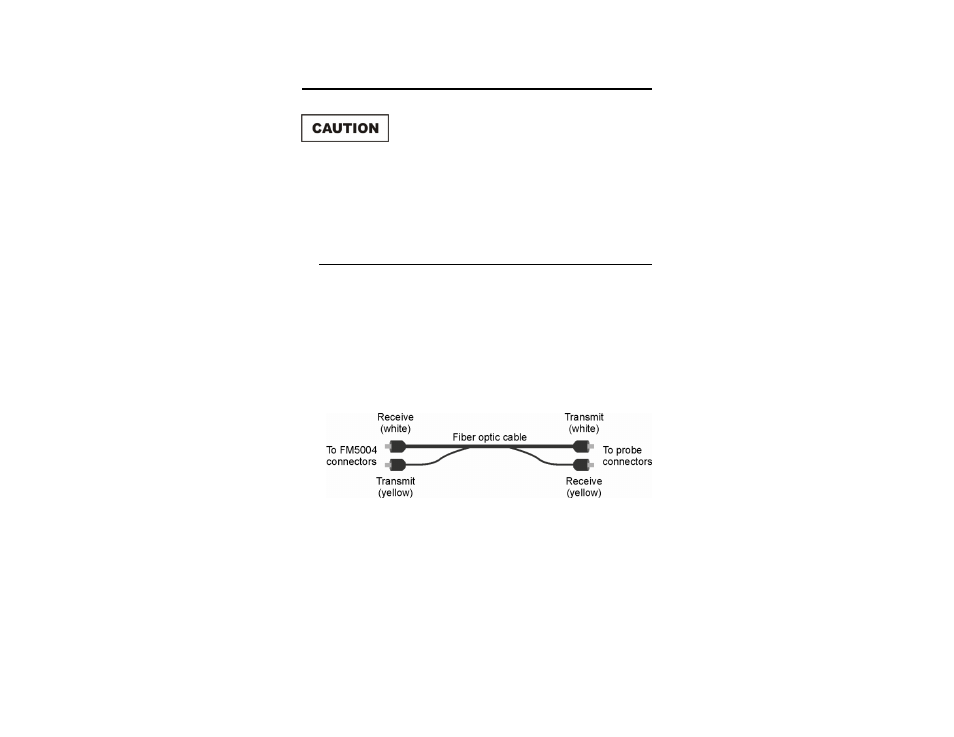

3. Attach the fiber optic cable to the transmit and receive connectors on
the back of the FM5004, matching yellow to transmit and white to
receive.
4. Attach the other end of the fiber optic cable to the probe connectors,
matching white to transmit and yellow to receive.
5. Plug the power cord into the power connector on the back of the
FM5004.
6. Plug the other end of the power cord into an electrical outlet.
