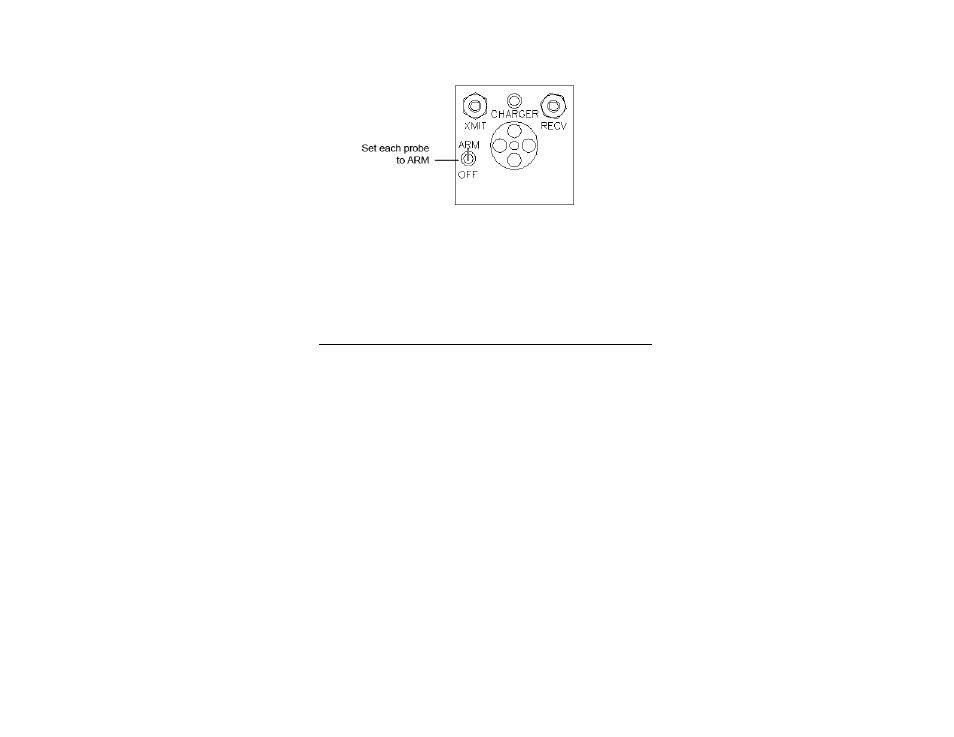

7. Set the ARM/OFF switch on all probes to ARM.
8. Power on the FM5004. A tone will sound, and it will perform a self-test.
If an error occurs, see Troubleshooting and Error Handling on
page 105.
Verify Optional Connections
If optional connections are part of your system configuration, perform a
bench test prior to installing the FM5004.
R EMOTE O PERATION
1. Connect the RS-232 or IEEE-488 cable to the appropriate connector.
• If RS-232 remote control is used—See Baud Rate on page 72 for
information on setting the device baud rate.
• If IEEE-488 remote control is used—Set the DEVICE ADDRESS to
the appropriate bus address for your installation. See IEEE-488
Requirements on page 57 for more information.
2. Send an identification query (*IDN?) from the remote controller;
verify that the FM5004 returns the proper response. See Identification
Query on page 99 for more information.
