Fabric OS Administrator’s Guide 441
53-1002745-02
Administrative Domains overview
17

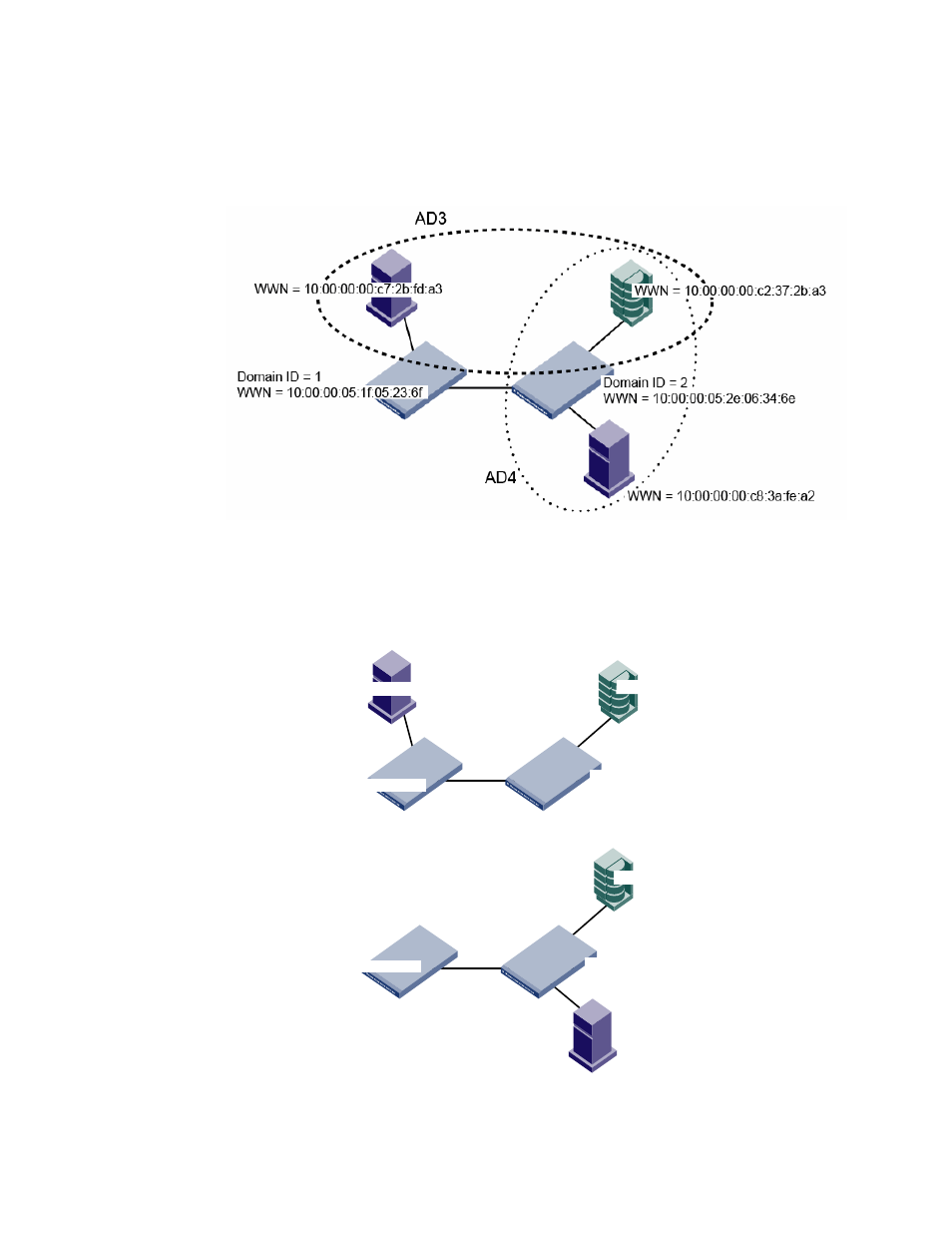

Figure 55 on page 441 shows an unfiltered view of a fabric with two switches, three devices, and
two Admin Domains. The devices are labeled with device WWNs and the switches are labeled with
domain IDs and switch WWNs.
FIGURE 55 Fabric showing switch and device WWNs
Figure 56 shows the filtered view of the fabric as seen from AD3 and AD4. The switch WWNs are
converted to the NAA=5 syntax; the device WWNs and domain IDs remain the same.
FIGURE 56 Filtered fabric views showing converted switch WWNs
Fabric Visible to AD3 User
Fabric Visible to AD4 User
WWN = 10:00:00:00:c8:3a:fe:a2
WWN = 10:00:00:00:c2:37:2b:a3
Domain ID = 2
WWN = 50:00:52:e0:63:46:e9:04
WWN = 10:00:00:00:c2:37:2b:a3
Domain ID = 2
WWN = 50:00:52:e0:63:46:e9:03
Domain ID = 1
WWN = 50:00:51:f0:52:36:f9:03
WWN = 10:00:00:00:c7:2b:fd:a3
Domain ID = 1
WWN = 50:00:51:f0:52:36:f9:04
