2.
Connect a CAT5 cable between the Ethernet port on the back of the TheaterLinX
and the SwitchLinX.

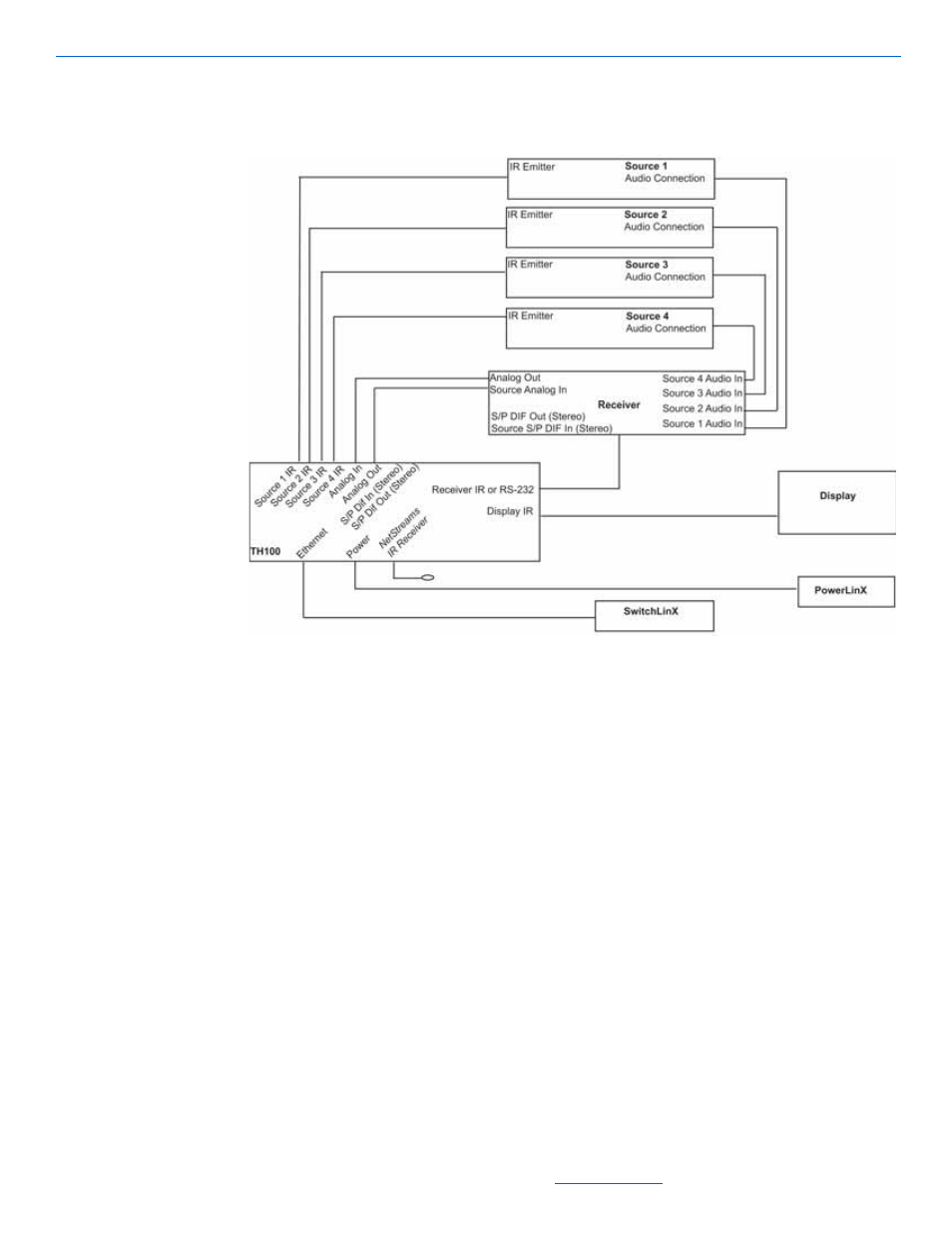

Figure 13-6
Connecting TheaterLinX to a SwitchLinX and PowerLinX
Installing TheaterLinX in a Rack
The TheaterLinX can be mounted using rack ears. To install a TheaterLinX in a rack,
complete these steps:
1.
Screw the rack mount ears into the TheaterLinX.
2.
Slide the TheaterLinX into the rack.
3.
Screw the rack ears into the rack.
4.
Follow the instructions for Installation, Connecting TheaterLinX to your Receiver
and Connecting TheaterLinX to the SwitchLinX and PowerLinX.
