Note:

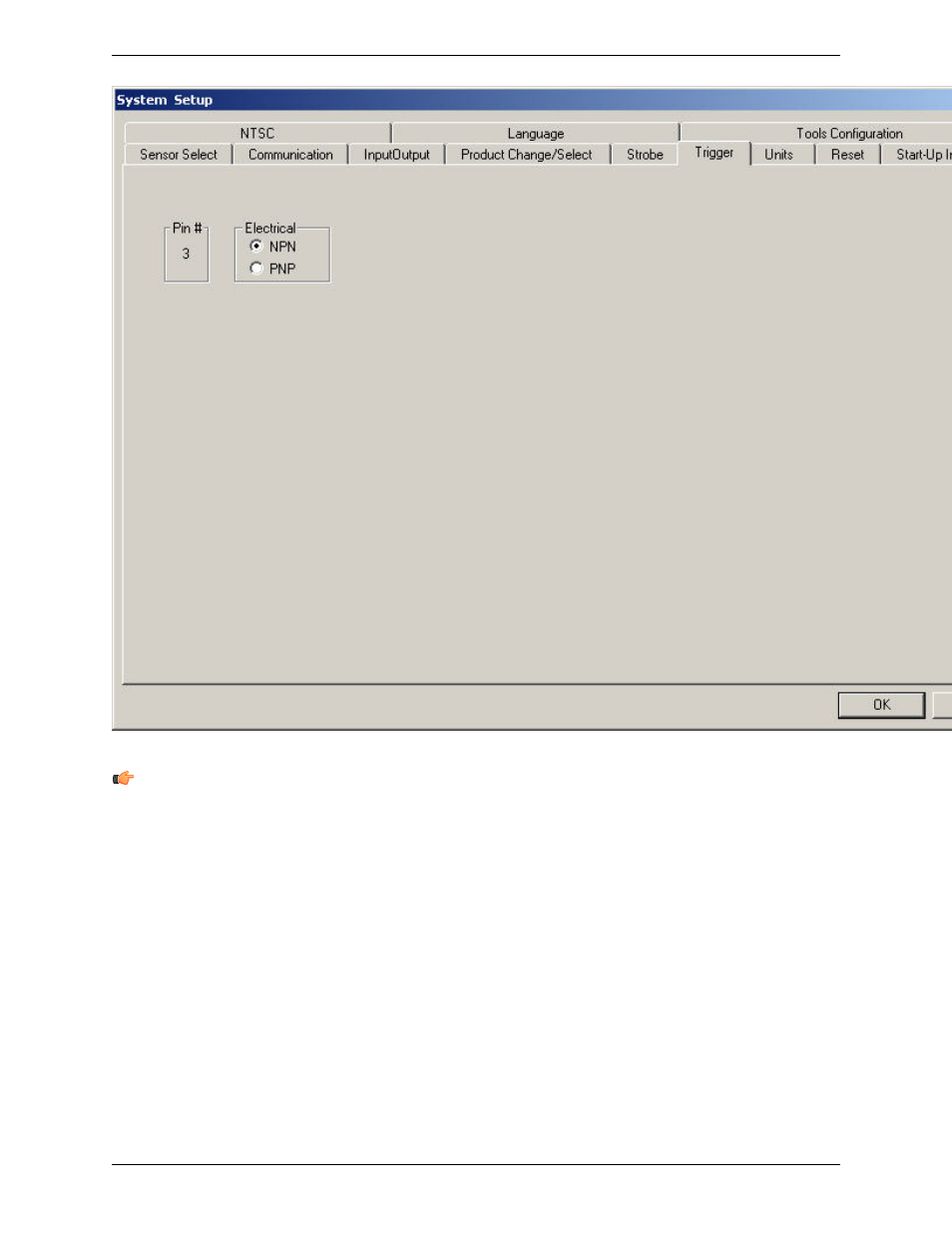

Adjust trigger divide, delay, and width in the Trigger tab on the Setup screen.
6.7 Units Tab
By default, the sensor expresses all distance calculations as pixels:
• Configure a scale value based on a known distance in user-selected units (for example, inches, millimeters, or
centimeters) See
Configure with Known Distance
on page 88 for more information.
Units Tab
Banner Engineering Corp. Minneapolis, MN USA 86
2/2010 System Setup Dialog
