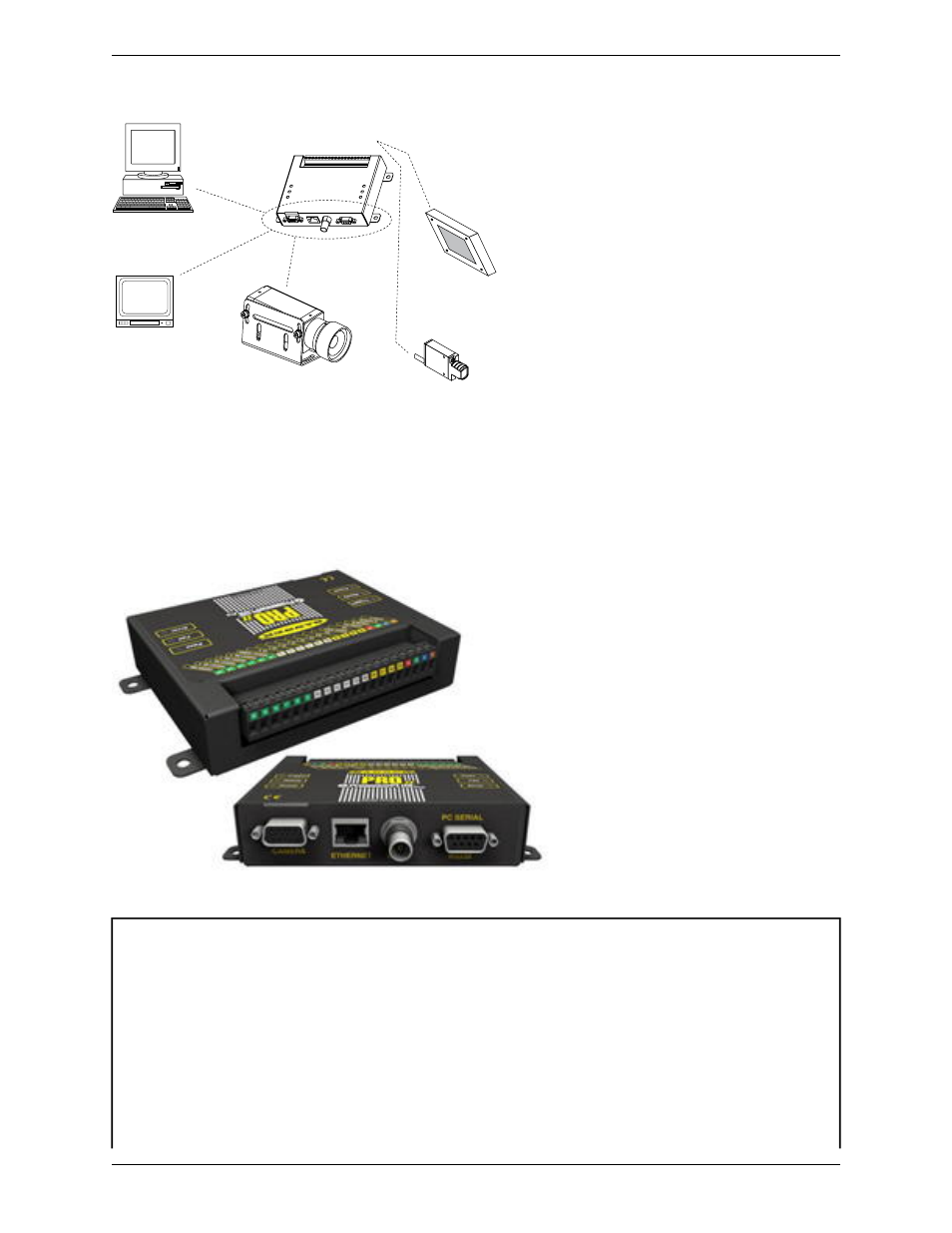

Controller
PC with PresencePLUS Software
(Required only for configuration and diagnostics)
Terminal Block
-Power Supply
-Trigger Input
-Light Source
-Other I/O
Video Monitor
(optional)
Camera
(Mounting Bracket is optional)
Trigger Device
Light Source
14.3 ProII Cable Connections
The camera, PC, and optional video monitor are attached to the controller as shown.
Crossover Ethernet Cable to PC Ethernet Port* Camera Cable to Camera
STPX07 -- 2.1 m (7') PPC06 -- 2 m (6')
STPX25 -- 7.6 m (25') PPC06RA -- 2 m (6')
or PPC23 -- 7m (23')
Standard Ethernet Cable to PC via Network Hub or
Switch
PPC23RA -- 7m (23')
PPC32 -- 10 m (32')
STP07 -- 2.1 m (7')
PPC32RA -- 10 m (32')
STP25 -- 7.6 m (25')
