Description Control
Click this button to remove an ROI from an image.
Use this field to rotate the ROI. You can manually key in
a rotation angle, or you can use the up or down arrow keys
to rotate the ROI.

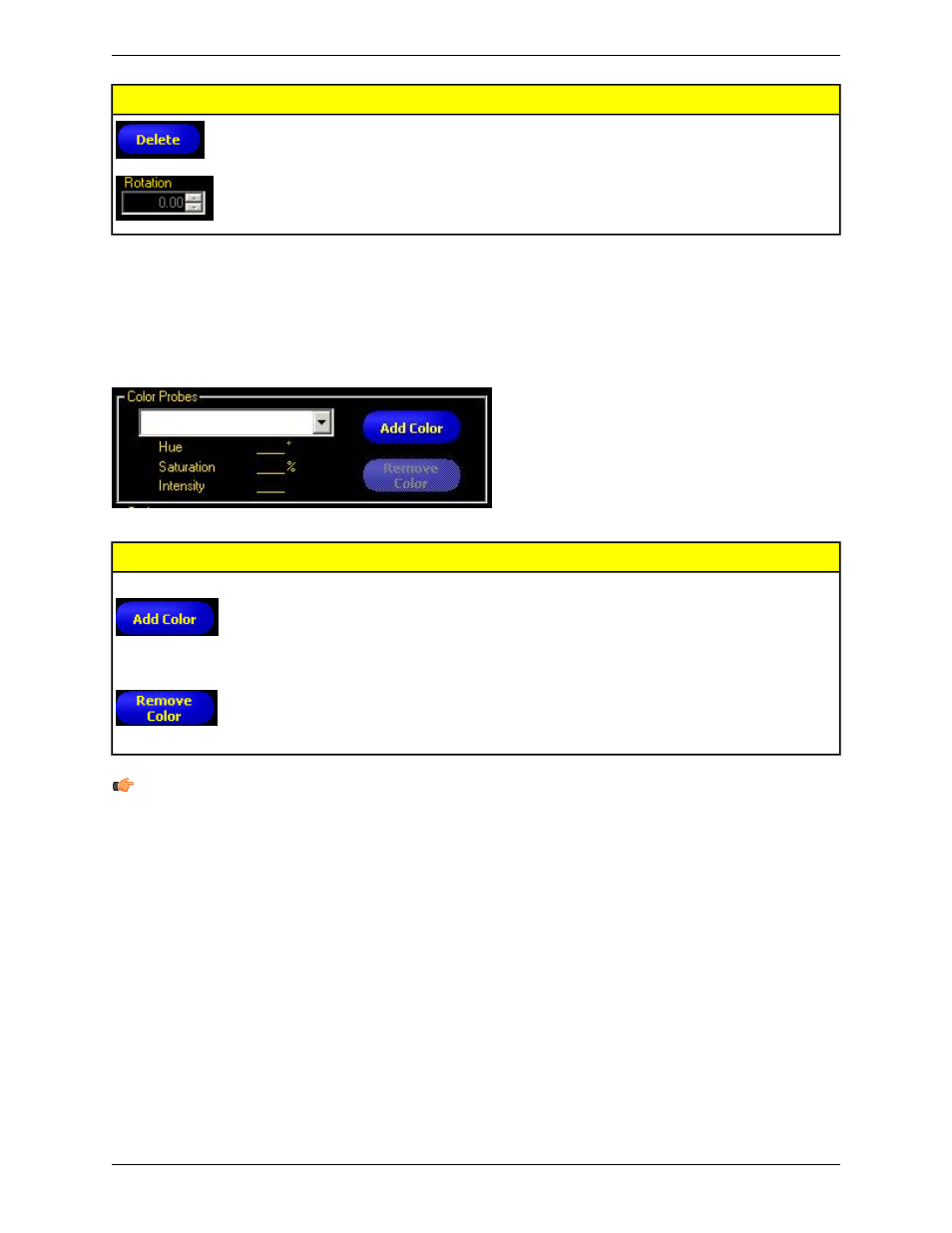

Color Probes
In the Color Blob tool, you need to define the bright Blob/dark Blob threshold. The threshold for the Color Blob tool
is not a specific gray scale value, but instead bright blobs are those that match the colors you define using Color Probes,
and dark blobs are those colors that do not match.
Description Button
Used to identify a color value range that will be used to define a Blob. The probe identifies the
color values within the selected area and groups together all adjacent pixels with that range of
values.
Used to select and remove a color probe.
Note:
The color probe may be created outside the ROI, but a BLOB of that color will only be detected within
the ROI.
