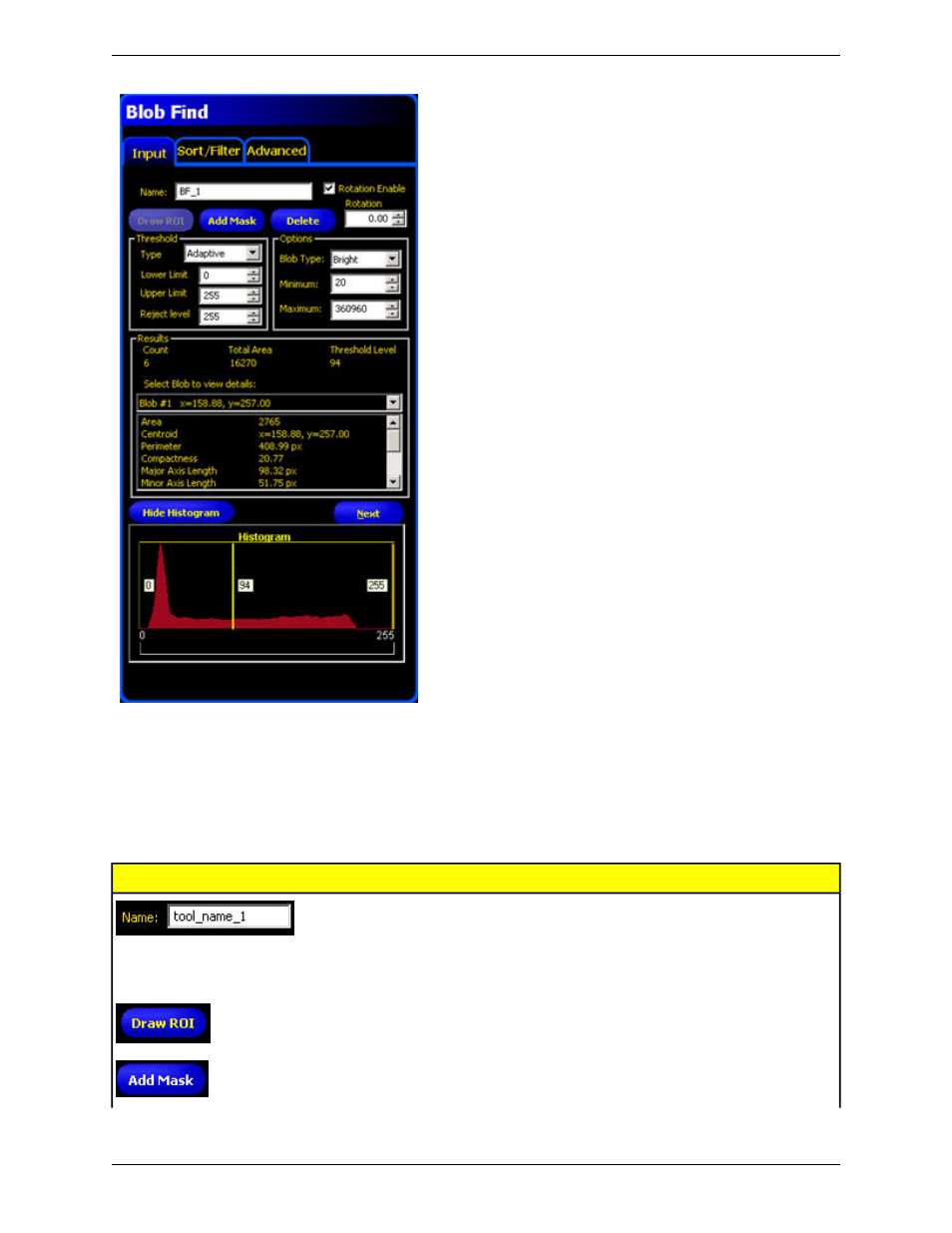

Adding a Blob Find Tool
1. Click the button of the tool to be added to the inspection.
2. If desired, rename the tool.
3. Draw an ROI.
Description Control
Use this field to rename the tool. The default is
tool_name
_1, tool_name_2, and so on, where the default
tool_name
depends on the tool being created (for example,
locate, edge or the like). The name can have only
alphanumeric characters and underscores with no spaces.
Click this button to add an ROI to an image.
Click this button to add a mask to an image. A mask
excludes an area inside the ROI.
